Condenser HVAC: Service and Repair

REMOVAL

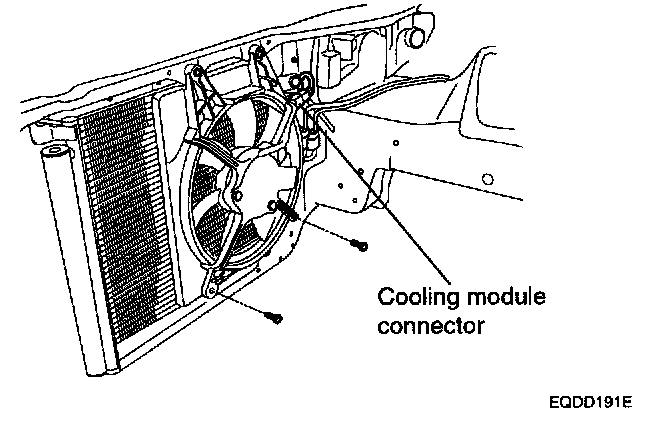

1. Remove the cooling module connector.

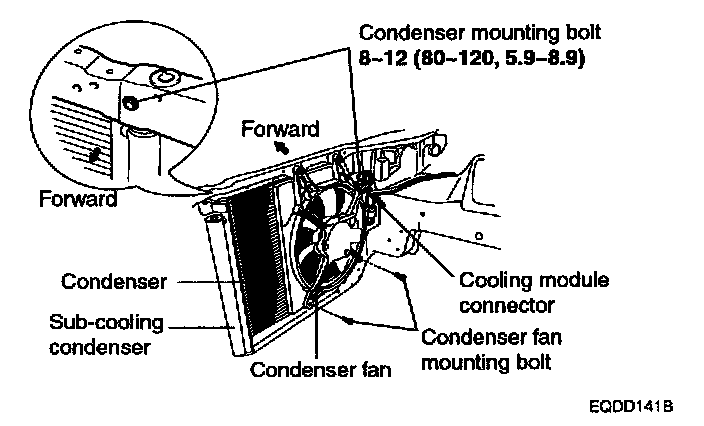

2. Remove the cooling module (condenser fan).




3. Remove the liquid tube nut.

4. Remove the condenser mounting bolts (2).

Tightening torque: 8-12 Nm




5. Remove the condenser upward by pressing the radiator backward the vehicle.

INSTALLATION
Installation is the reverse of removal.
