Brake Lamp: Service and Repair

STOP LAMPS

REMOVAL AND INSTALLATION
1. Disconnect the negative(-) battery terminal.

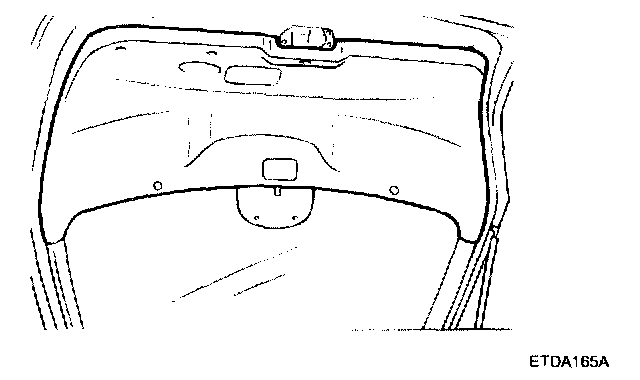

2. Remove the tailgate trim




3. Remove the 5 bolts, disconnect the wire connector and then remove the center high mounted stop lamp.

4. Installation is the reverse of removal.
