Hazard Warning Lamps: Testing and Inspection

TURN /HAZARD LAMPS

INSPECTION
1. Disconnect the negative(-) battery terminal




2. Remove the center facia panel with a flat-tip screwdriver, then disconnect the switch connector

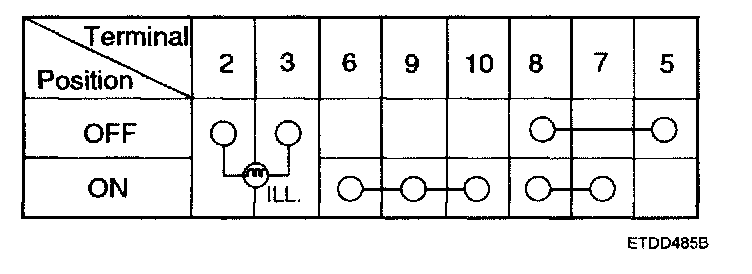

3. Operate the switch and check for continuity between terminals with an ohmmeter.
