Headlamp: Service and Repair

REMOVAL AND INSTALLATION
1. Disconnect the negative(-) battery terminal.

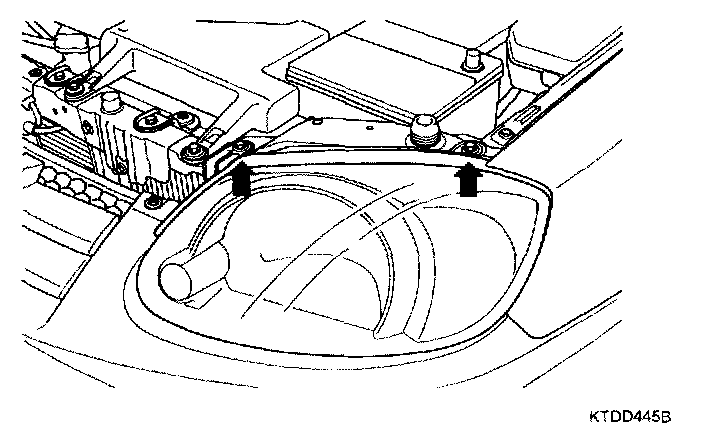

2. Remove the head lamp mounting bolts (2EA), then disconnect the lamp connectors.
3. Installation is the reverse of removal.
