Fusible Link: Application and ID

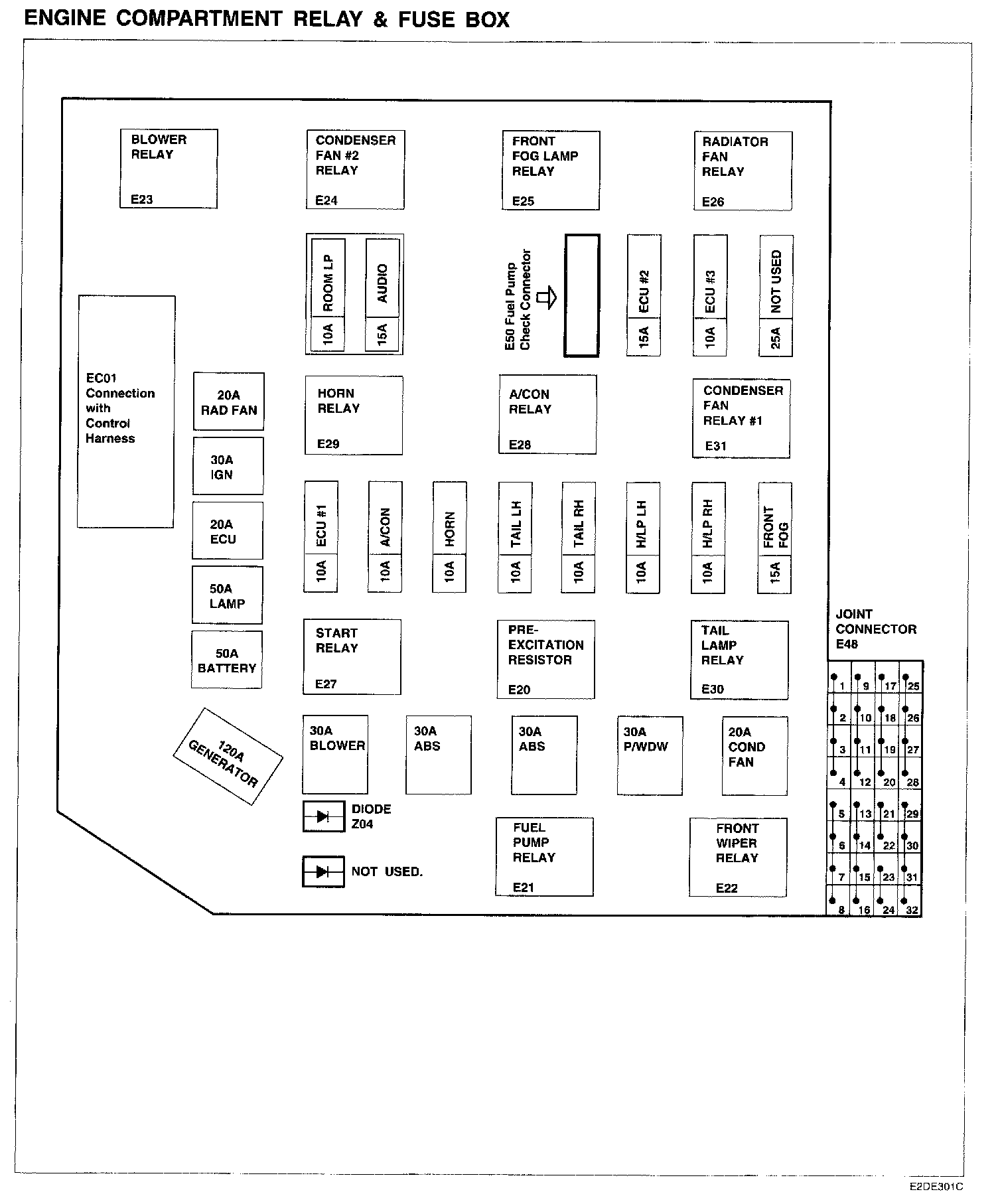

Engine Compartment Relay & Fuse Box Layout:



Engine Compartment Relay & Fuse Block Circuit Details:
