Home >> Hyundai >> 2004 >> Accent L4-1.6L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Air Bag

Air Bag

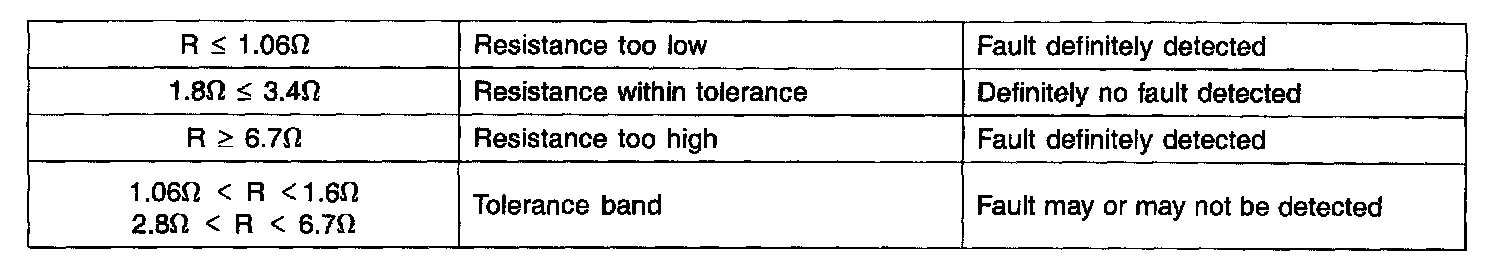

DAB:

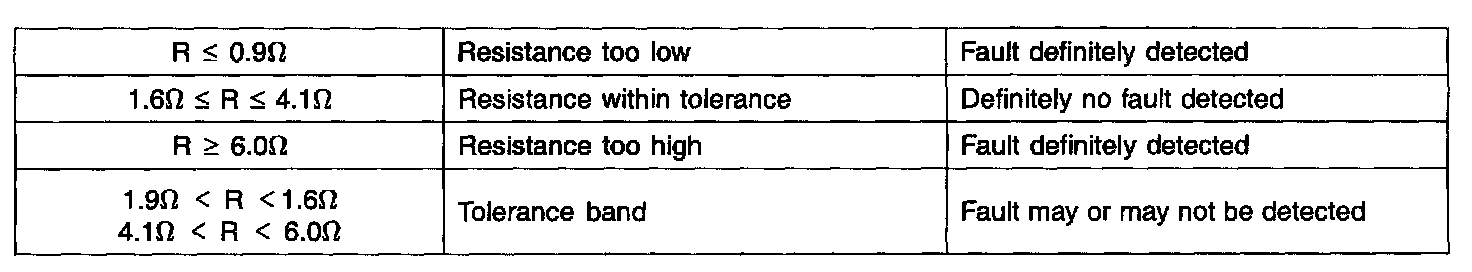

PAB, SAB, BPT:

DAB, DAB (2ND STAGE):

PAB, SAB, PAB (2ND STAGE):

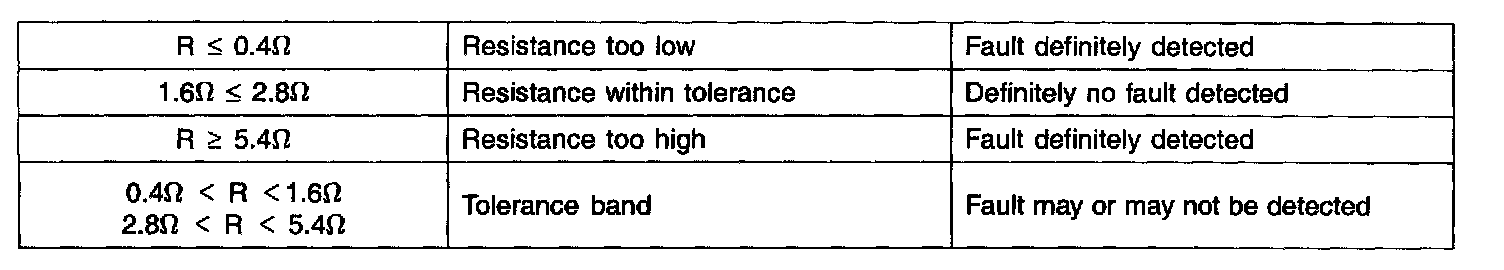

BPT:
