Mechanical Specifications

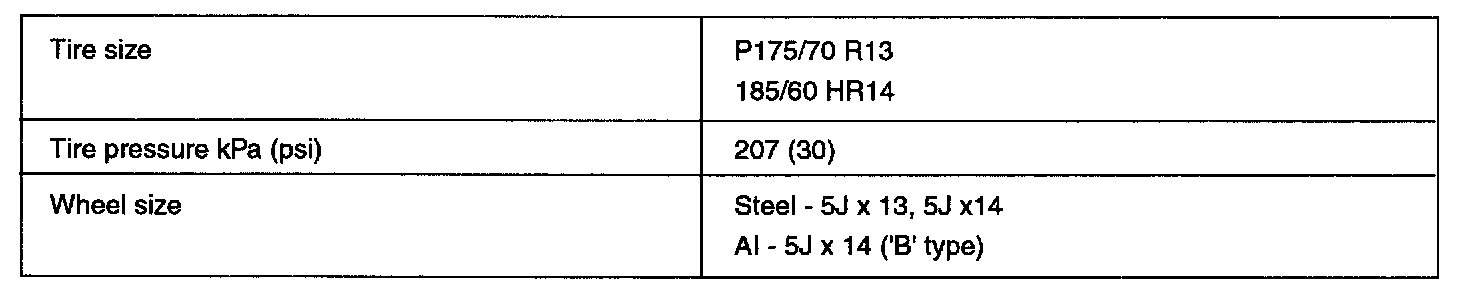

ALIGNMENT:

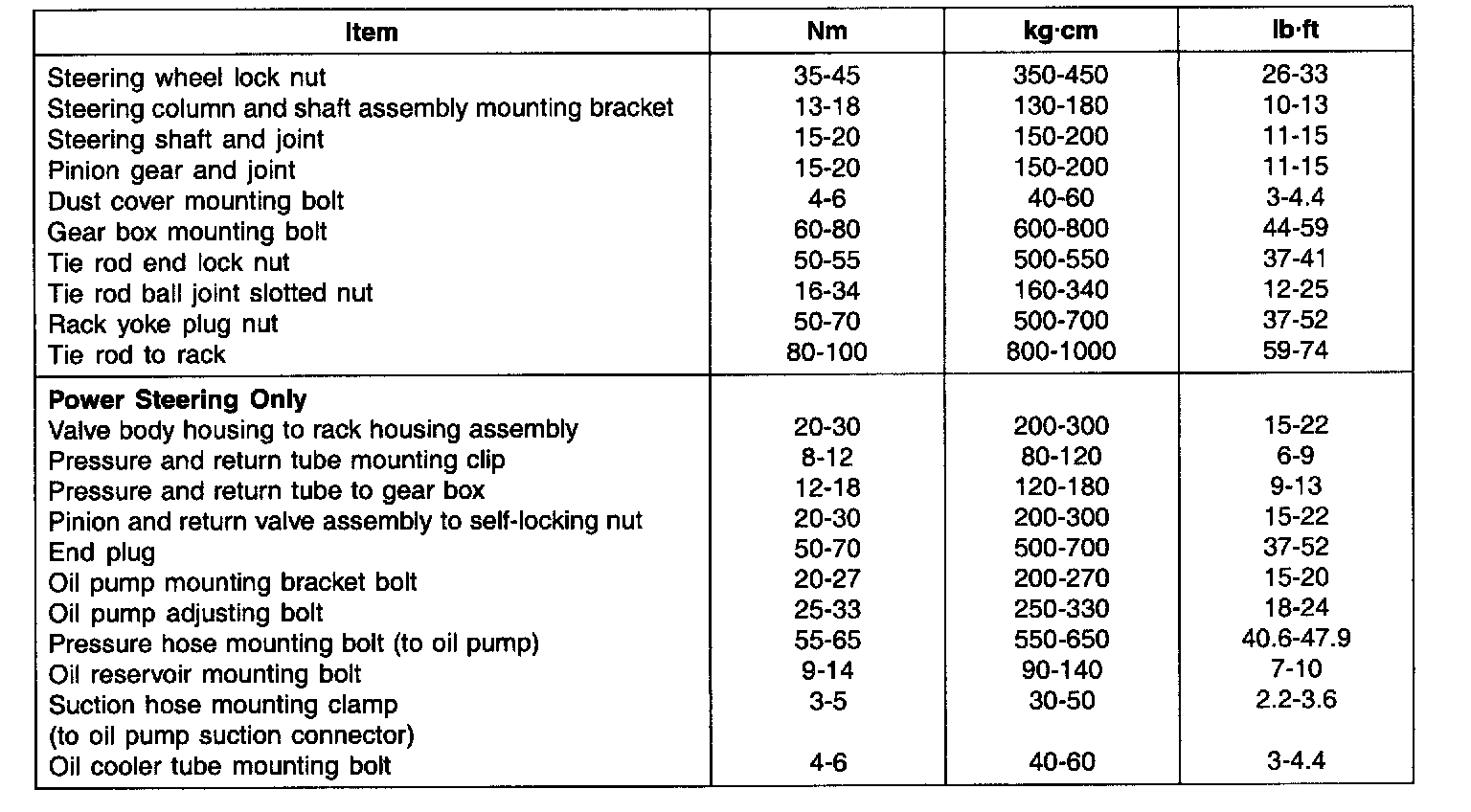

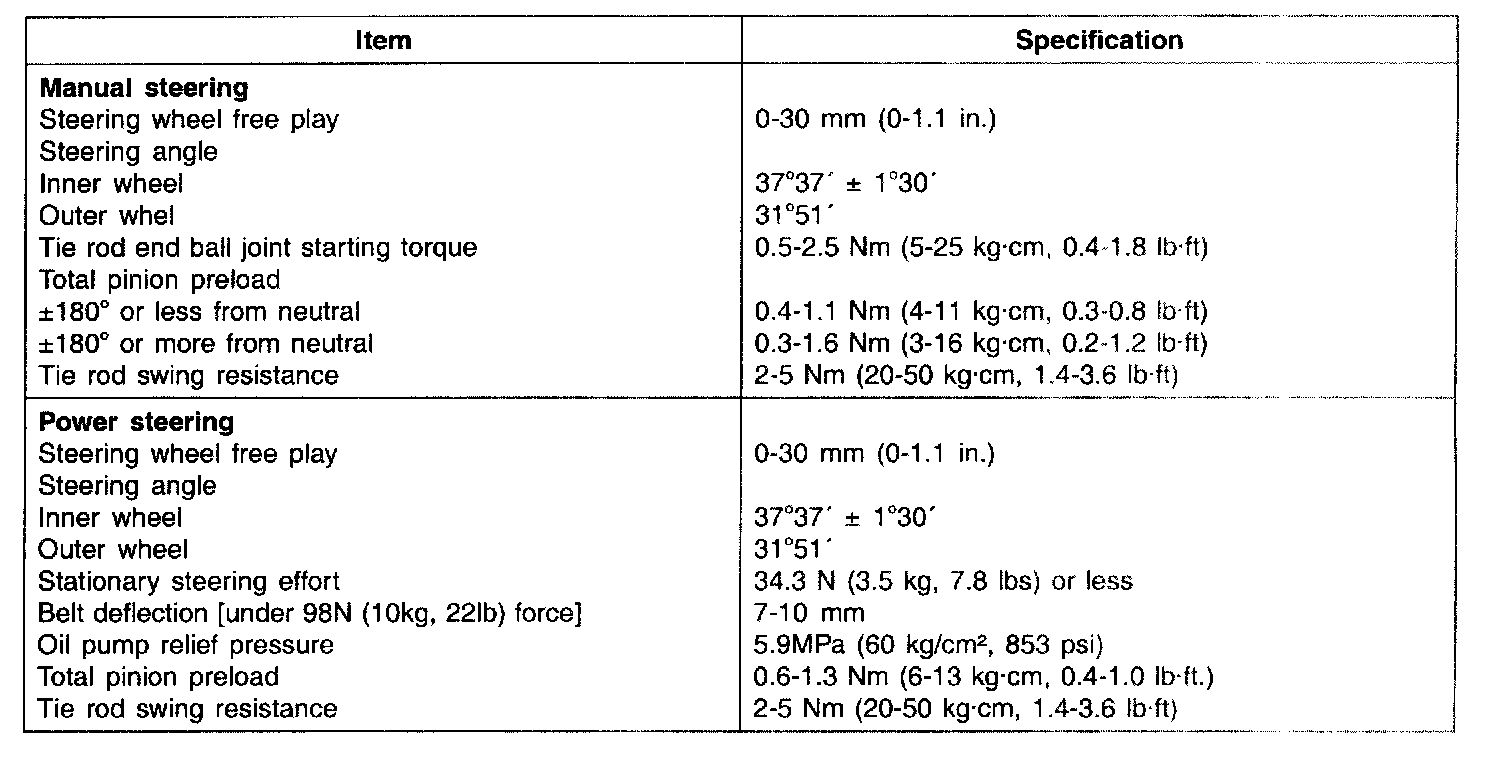

STEERING:

ALIGNMENT:

STEERING COLUMN / SHAFT:

LOWER ARM (Front):

UPPER ARM, LOWER ARM AND ASSIST LINK (Rear):

FRONT STABILIZER BAR:

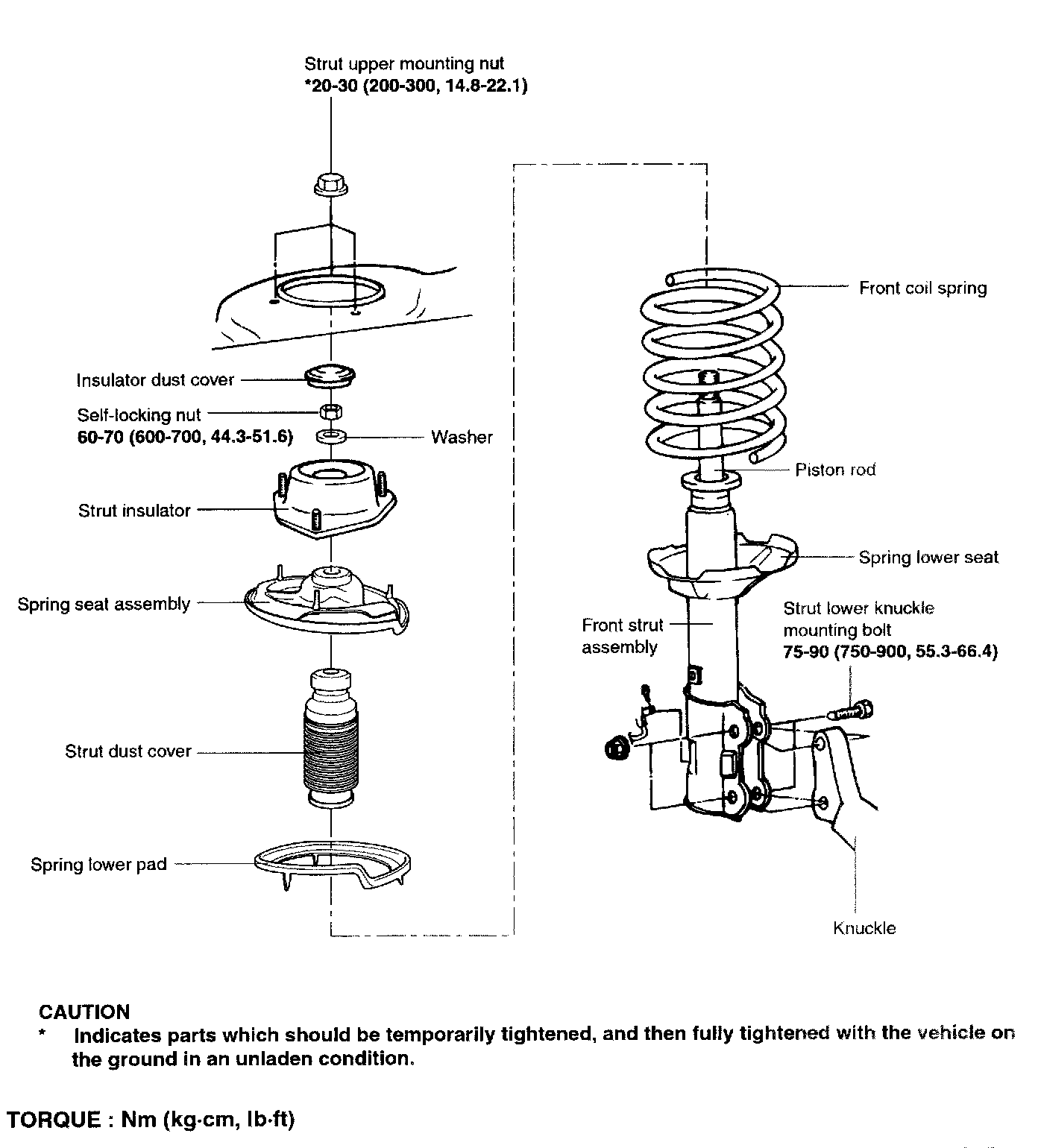

STRUT ASSEMBLY (Front):

REAR STRUT:
