Wipers/Washers - Wiper Arm Nut Torque Correction

Group:
BODY ELECTRICAL

Number:
04-90-011

Date:
AUGUST, 2004

Model:
2003-2004 ACCENT, 2003-2004 SANTA FE, 2002-2004 SONATA

Subject:
WINDSHIELD WIPER ARM MOUNTING NUT TIGHTENING TORQUE SPECIFICATION (SHOP MANUAL CORRECTION)

DESCRIPTION:

The 2003-2004 Accent, 2003-2004 Santa Fe and 2002-2004 Sonata Shop Manuals provide incorrect tightening torque specifications for the windshield wiper arm mounting nut. The correct tightening torque specification is provided below.

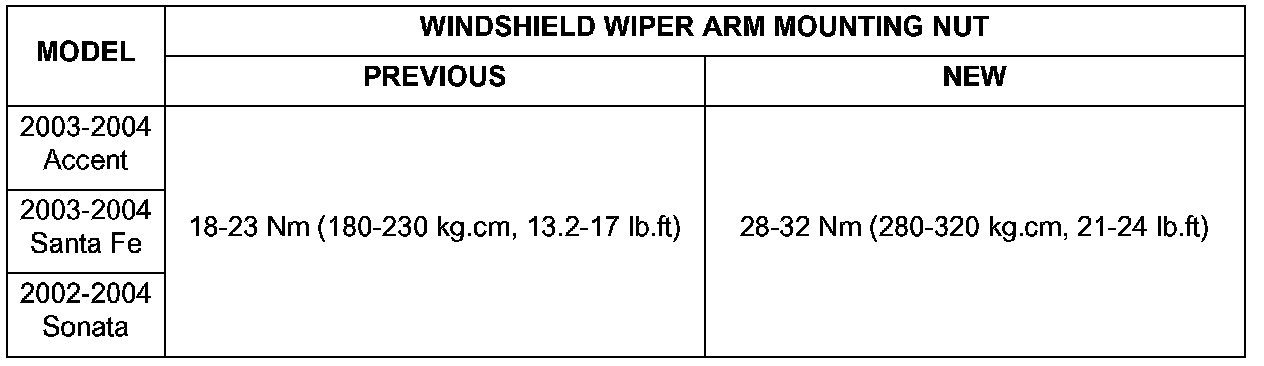

TIGHTENING TORQUE SPECIFICATION

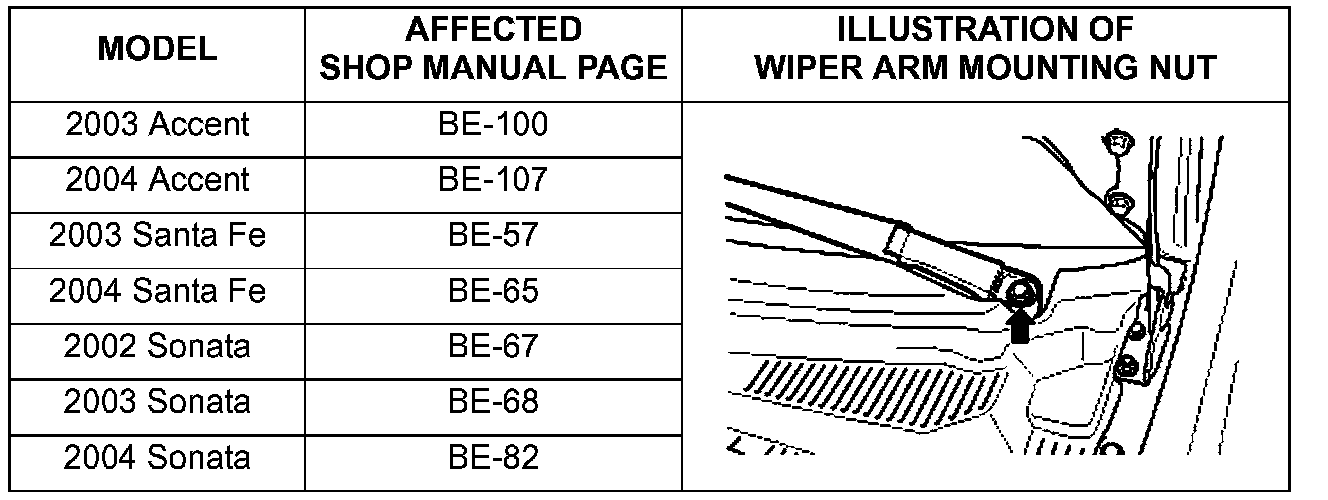

Please revise the tightening torque specification shown in the affected shop manuals for future reference.
