Wiper Switch: Service and Repair

Windshield Wiper/Washer:

REMOVAL AND INSTALLATION




1. Disconnect the negative (-) battery terminal.

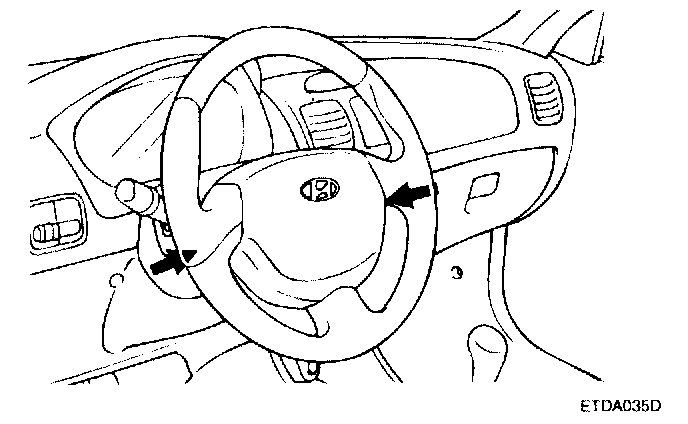

2. Remove the 2 bolts and disconnect the airbag connector and the horn connector, then remove the airbag module.

CAUTION: Remove the horn pad only for vehicle without airbag.




3. Remove the steering wheel lock nut.




4. Remove the steering wheel with special tool (09561-11002).

CAUTION: Do not hammer on the steering wheel to remove it. Doing so may damage the collapsible mechanism.

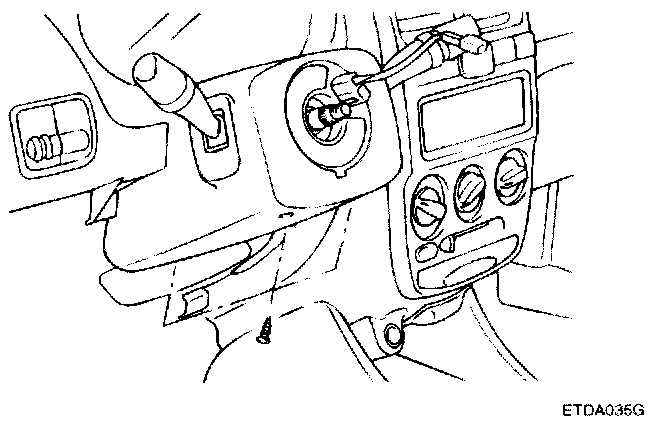

5. Remove the steering column shroud after removing 3 screws.




6. Disconnect the wire connectors and remove the multi function switch after removing the screws.
7. Installation is the reverse of removal.
