Radio, Stereo, and Compact Disc: Service and Repair

REMOVAL
1. Disconnect the negative (-) battery terminal.

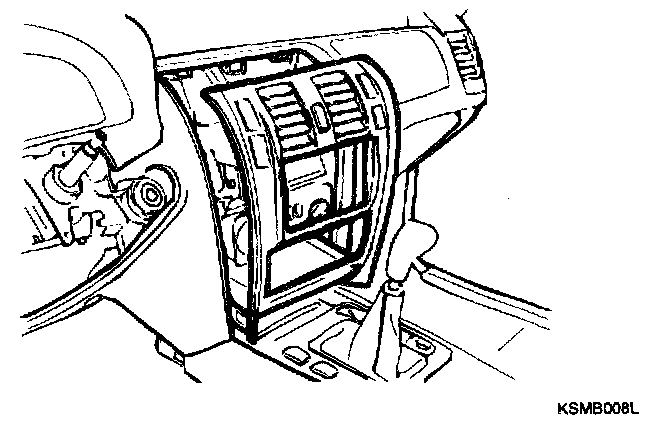

2. Remove the center facia panel and disconnect the wire connectors.

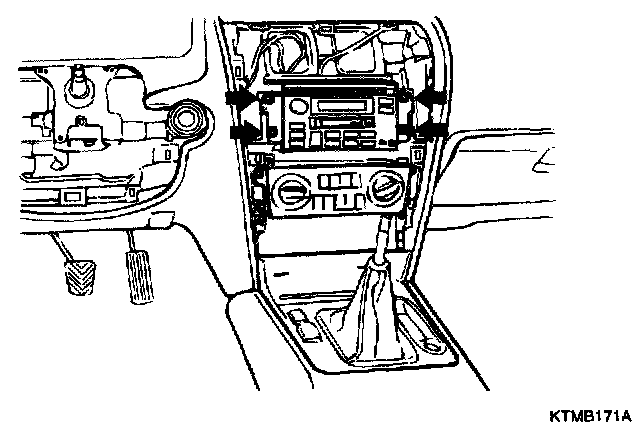

3. Remove the 4 screws holding the audio unit then remove the audio assembly.

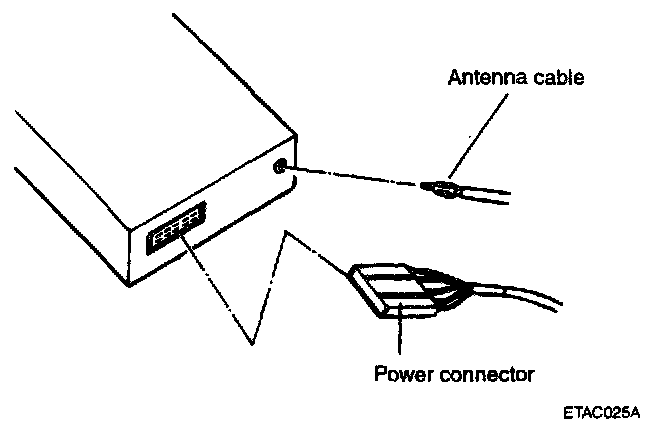

4. Disconnect the power connector and antenna cable jack from the audio unit.
5. Installation is the reverse of removal.
