Home >> Hyundai >> 2004 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> I Connectors (In Instrument Harness) >> I/P-K to I/P-M

I/P-K to I/P-M

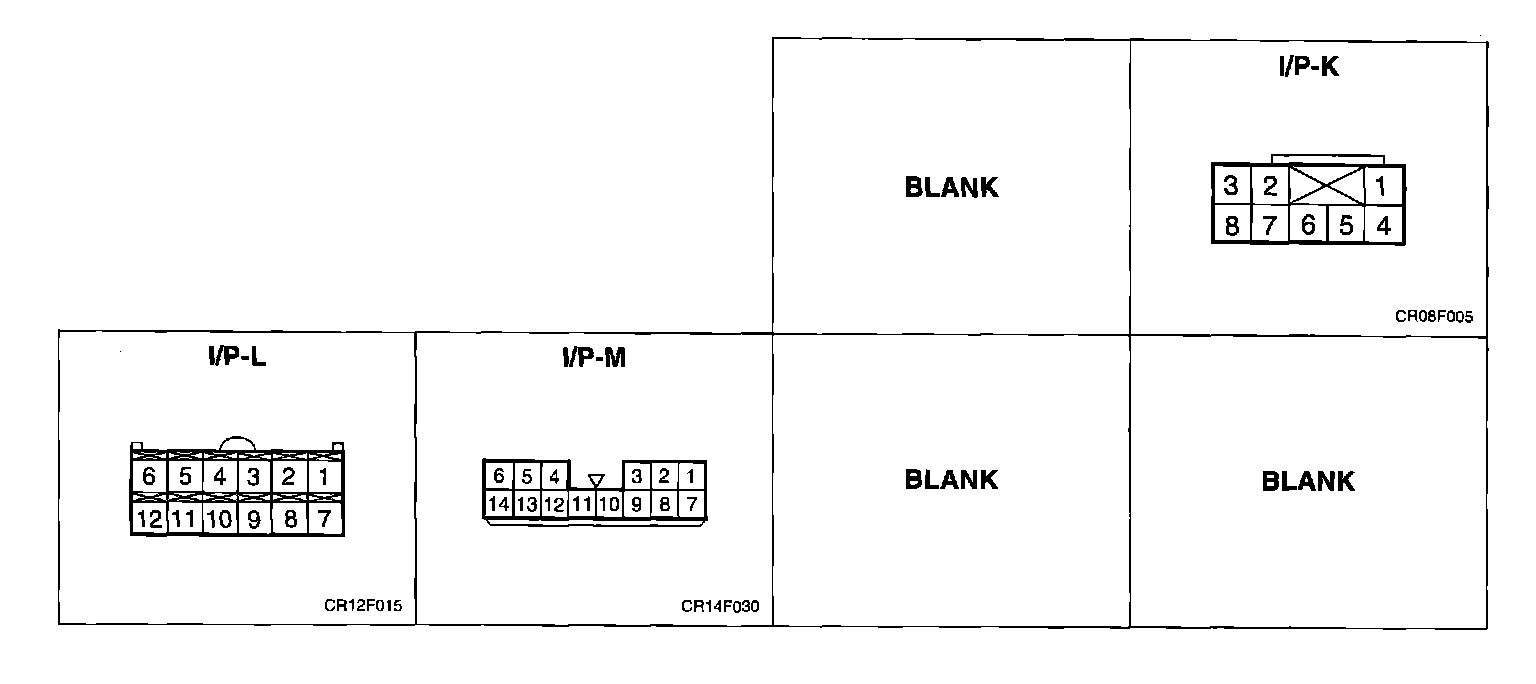

I/P-K To I/P-M:
