Home >> Hyundai >> 2004 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> I Connectors (In Instrument Harness) >> I21-2 to I42

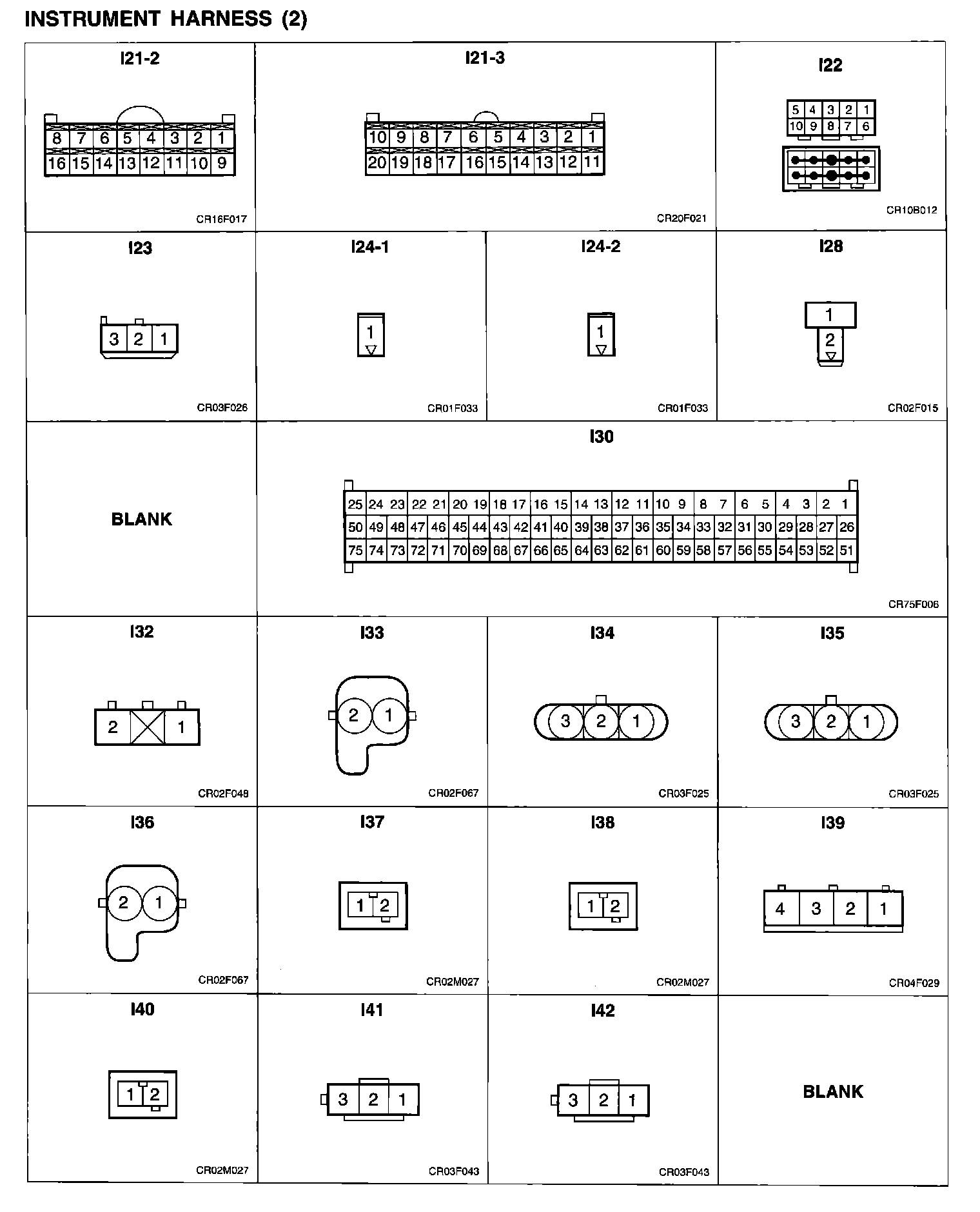

I21-2 to I42

I21-2 To I42:
