Home >> Hyundai >> 2004 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> M Connectors (In Main Harness) >> MC01 to MC05

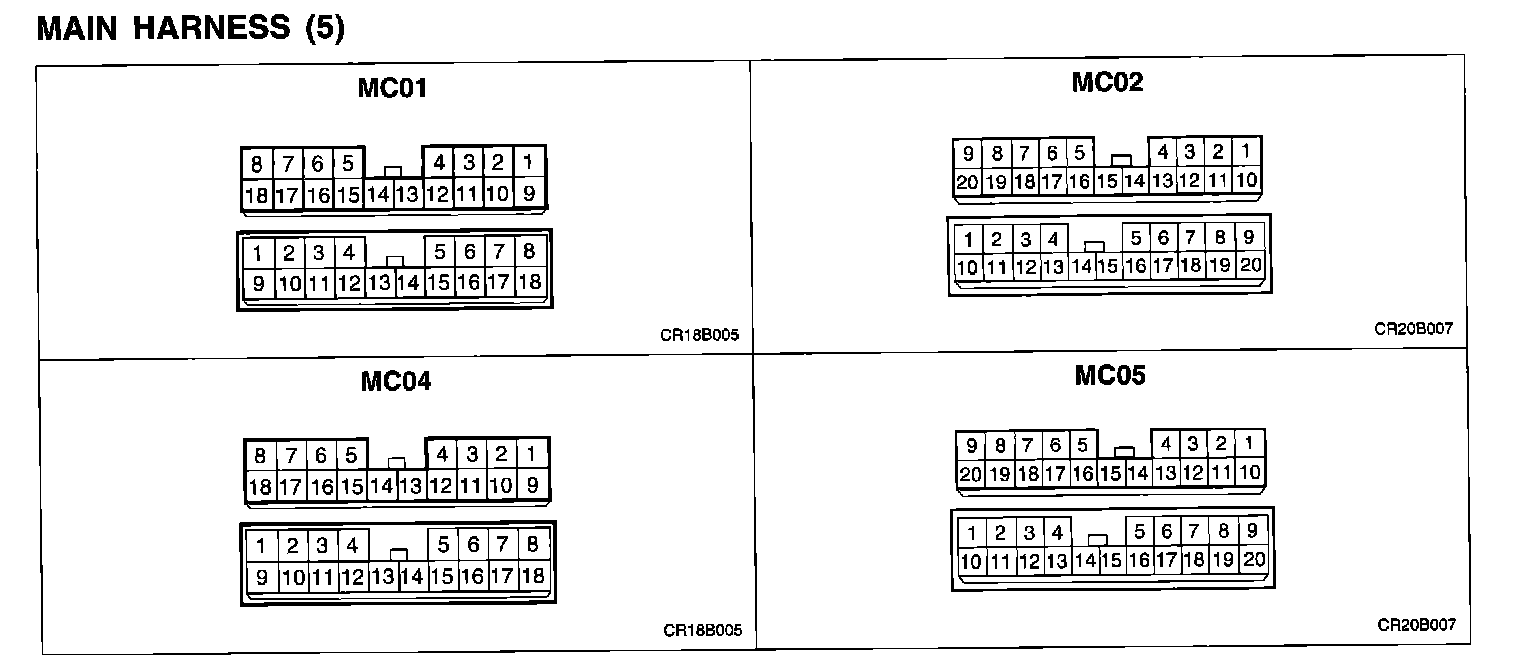

MC01 to MC05

MC01 To MC05:
