Fuse Block: Testing and Inspection

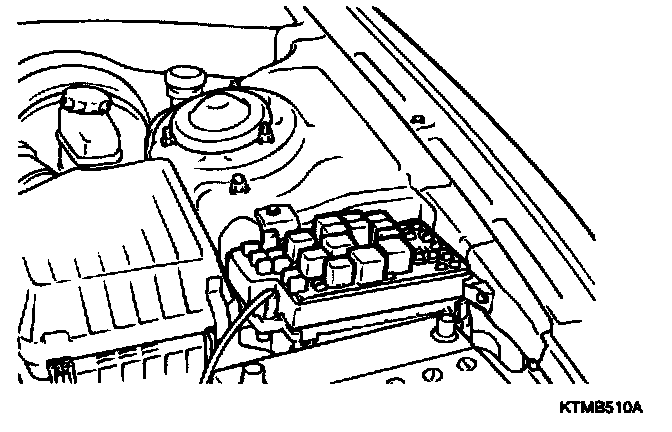

INSPECTION1. Check for a blown fusible link with an ohmmeter.
2. If a fusible link burns out, there is a short or some other problem in the circuit. Carefully determine the cause and correct it before replacing the fusible link.
CAUTION: The fusible link will burn out within 15 seconds if a higher than specified current flows through the circuit.
INSPECTION OF FUSES
When a fuse is blown, there are two probable causes. The two causes can easily be determined by a visual check after removing the fuses.

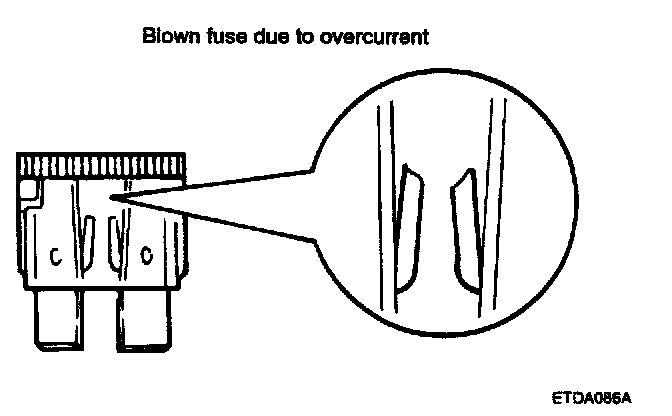

1. Fuse blown due to over-current
Prior to replacing the fuse with a new one, check the circuit for a short and the related parts for abnormal conditions.
Only after the correction of a short or replacement of abnormal parts, should a fuse with the same ampere rating be installed.

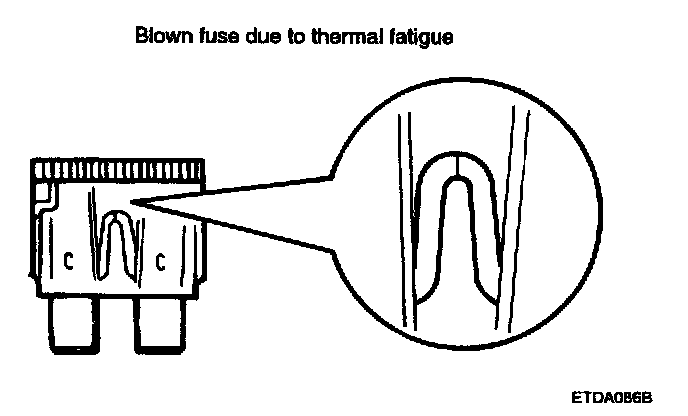

2. Fuse blown due to repeated on-off current
Normally, this type of problem occurs after a fairly long period of use, and is less frequent than #1 above. In this case, you may simply replace with a new fuse of the same capacity.

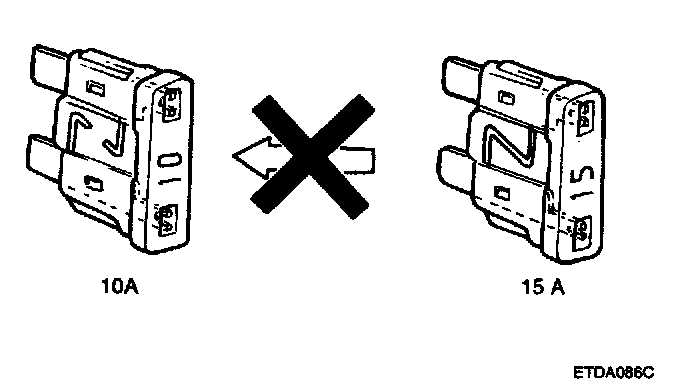

WARNING A blade type fuse is identified by the numbered value in amperes. If the fuse is blown, be sure to replace a fuse with the same ampere rating. If a fuse of higher capacity than specified is used, parts may be damaged and a danger of fire exists. To remove or insert a fuse, use the fuse puller in the fuse box
