Automatic Transmission/Transaxle: Tools and Equipment





LUBRICATIONS (A/T)

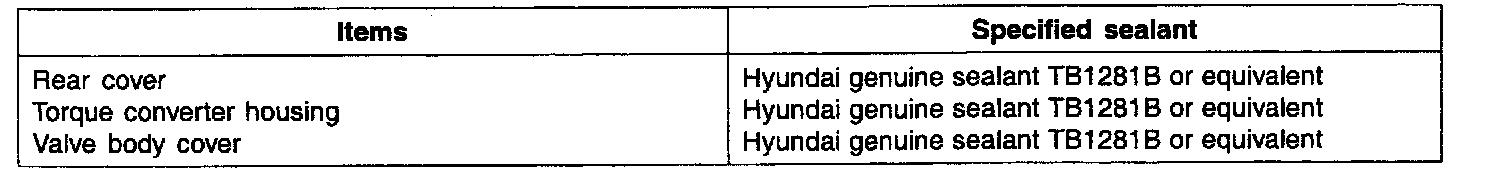

SEALANTS (A/T)

Part 1:




Part 2:




Part 3:

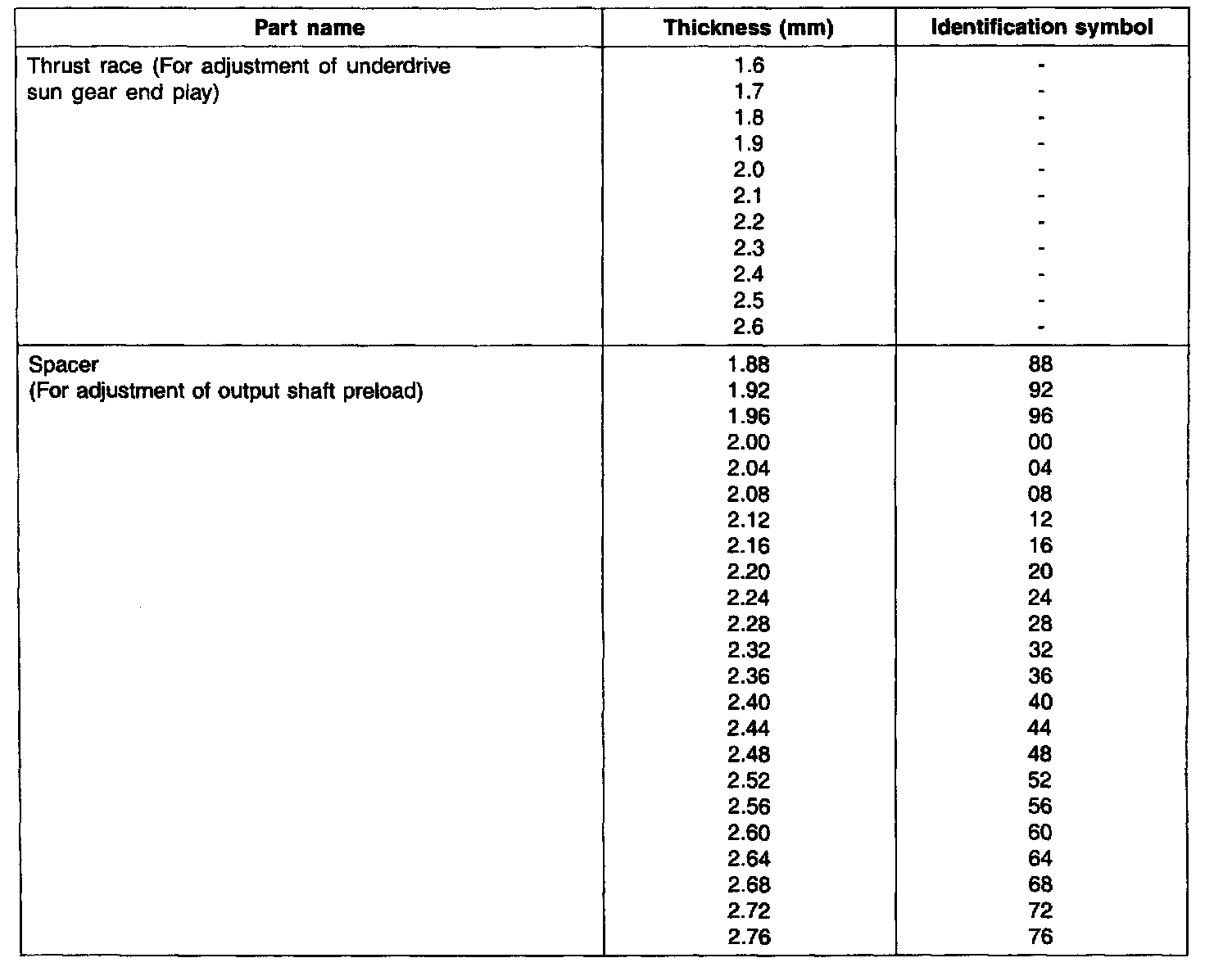

SNAP RING FOR ADJUSTMENT AND SPACER (A/T)





SPECIAL TOOLS
