System Diagram

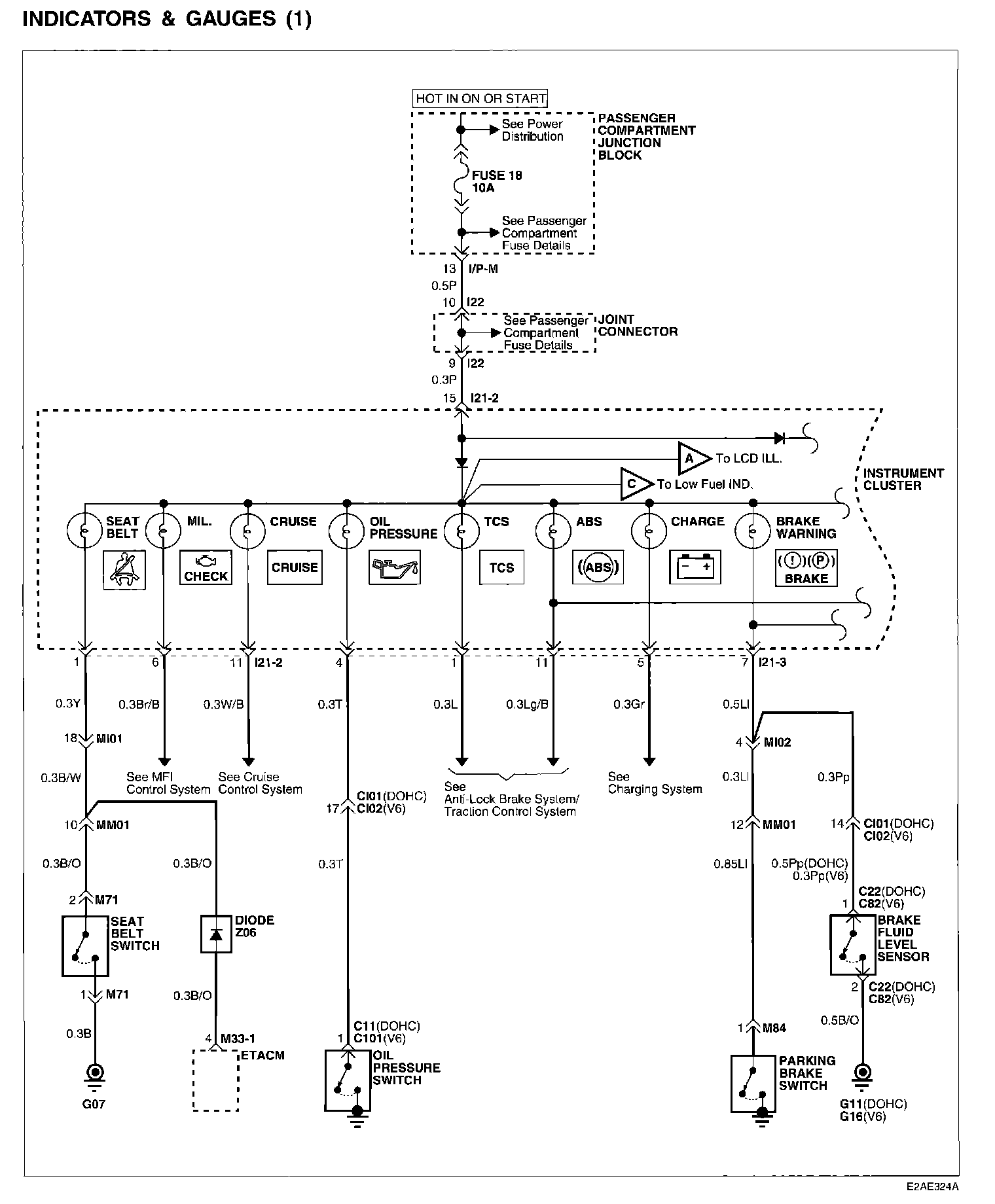

Indicators And Gauges (1):

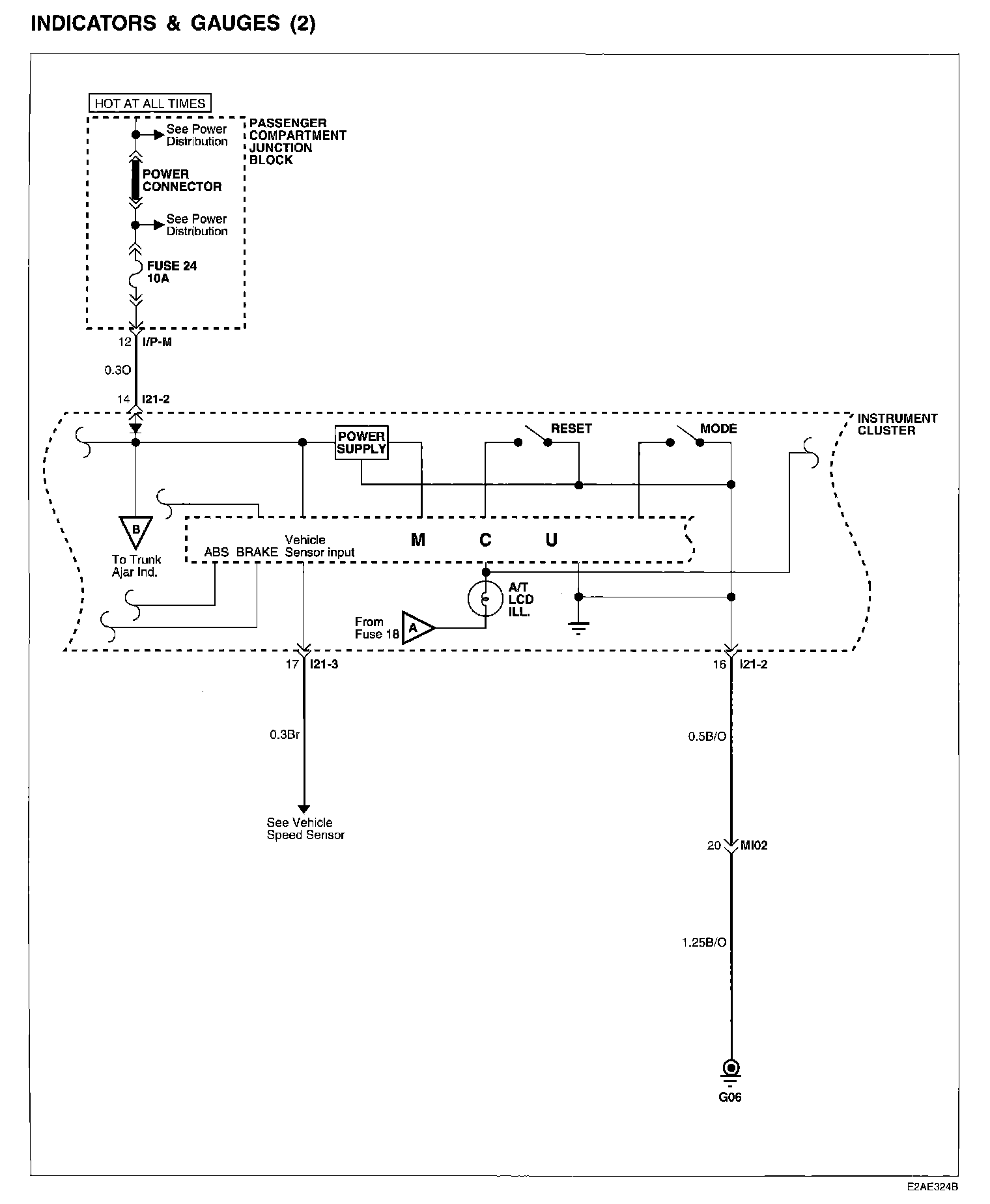

Indicators And Gauges (2):

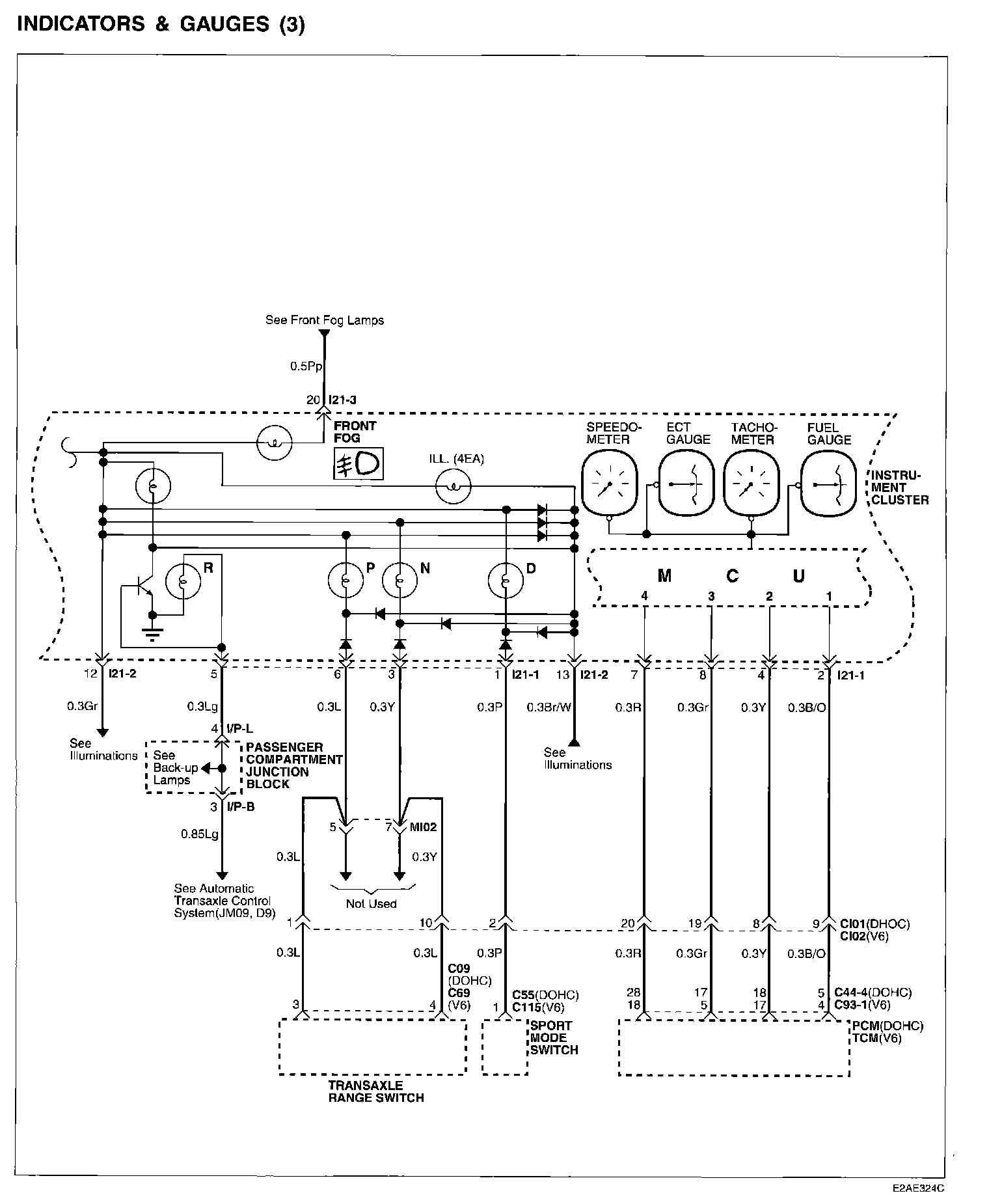

Indicators And Gauges (3):

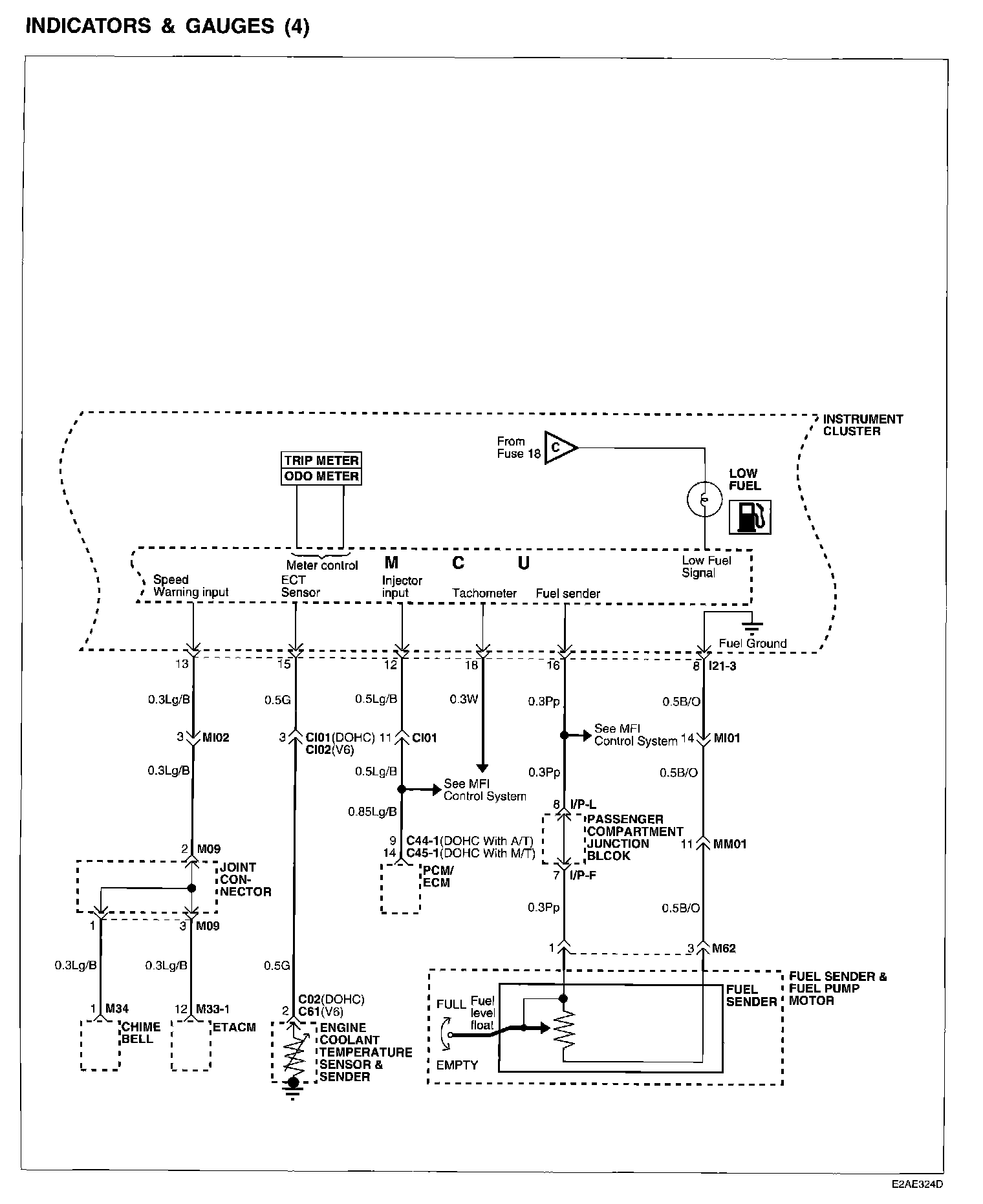

Indicators And Gauges (4):

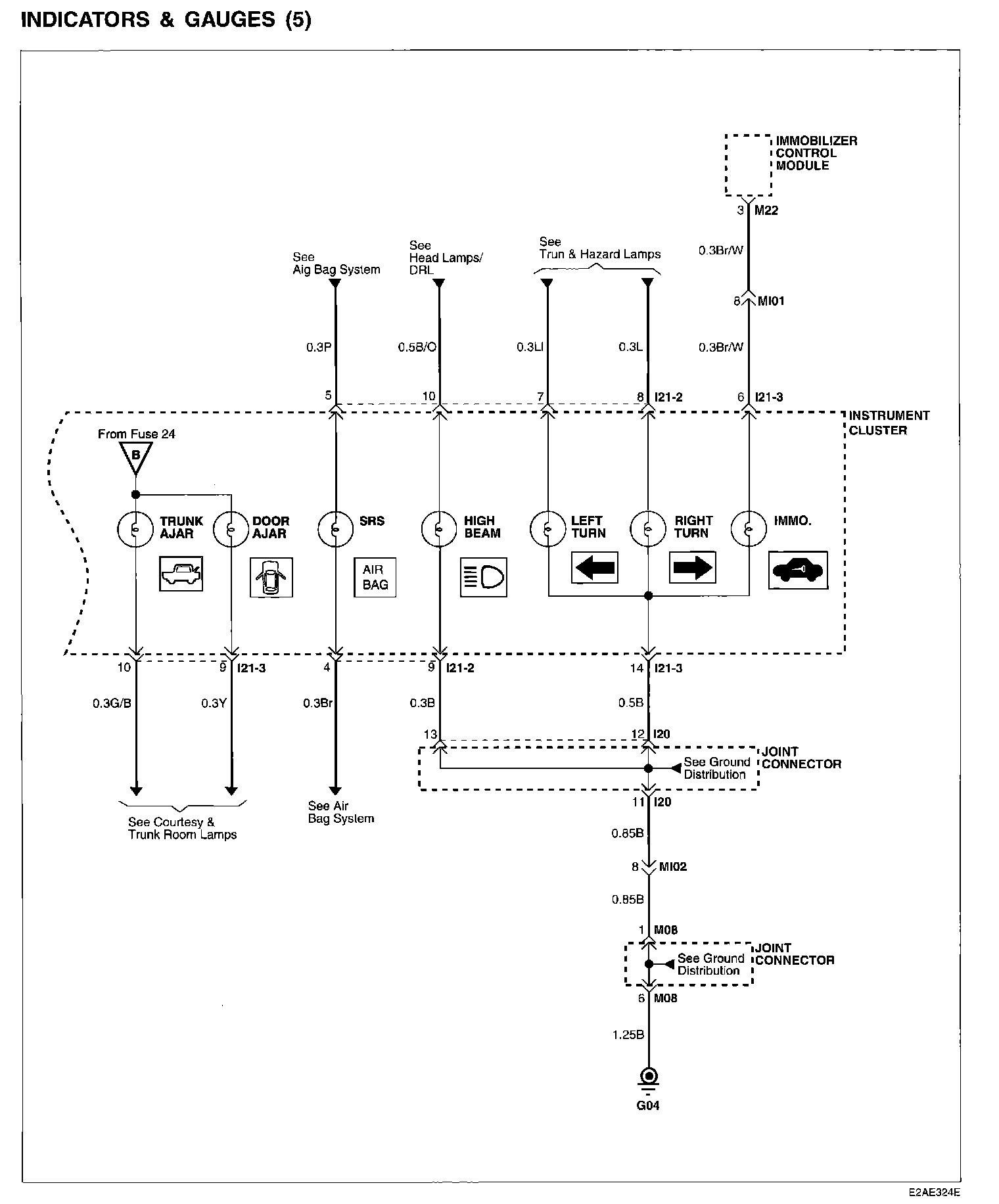

Indicators And Gauges (5):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
