P0350

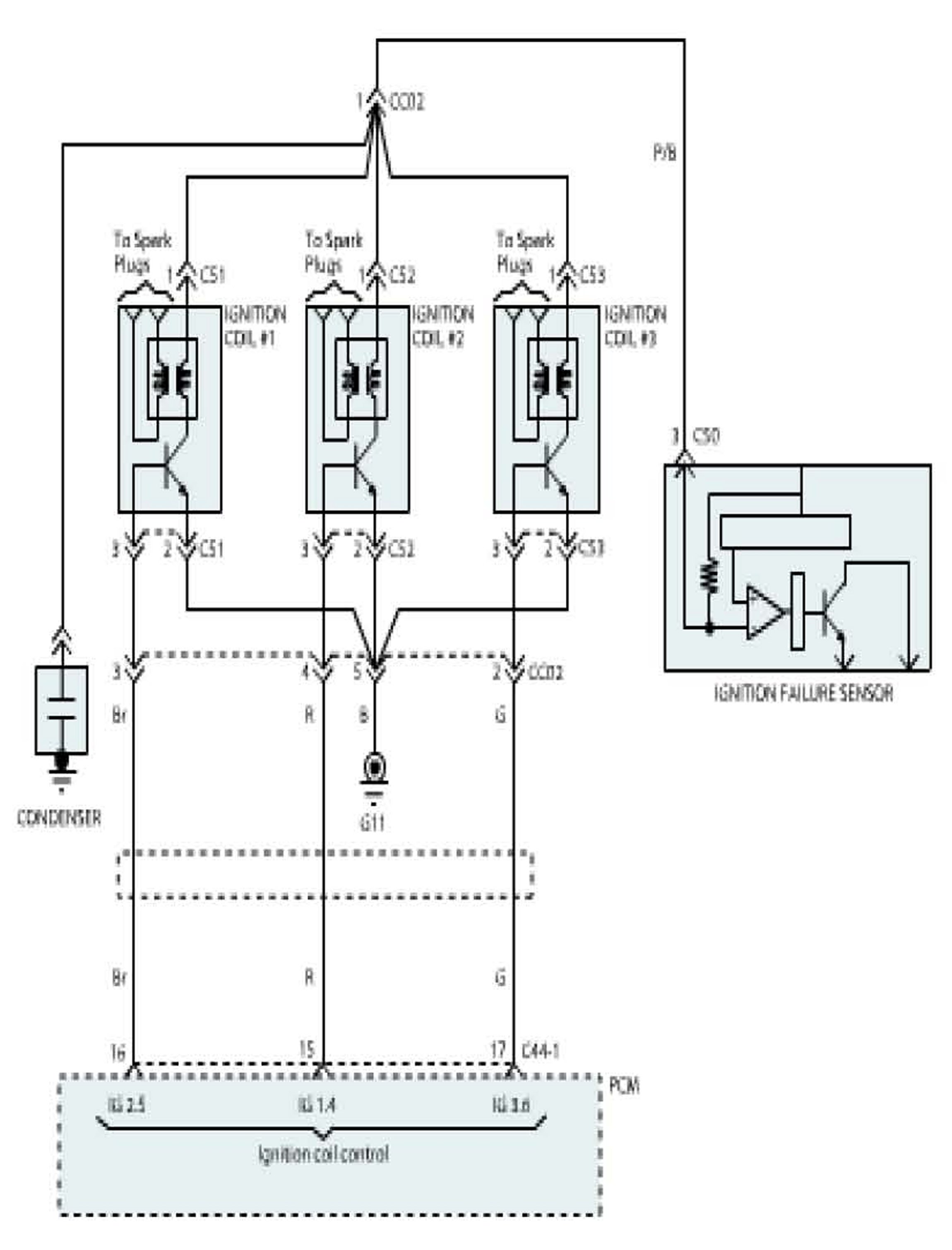

P0350 Ignition Coil Primary/Secondary Circuit

Component Location

General Description

With the ignition switch in the ON or START position, voltage is applied to the ignition coil.
Each ignition coil consists of two coils. High tension leads go to each cylinder from the ignition coils.
The ignition coils fire two spark plugs on every power stroke (the cylinder under compression and the cylinder on the exhaust stroke). The Powertrain Control Module (PCM) provides a switching circuit to ground for energizing the primary ignition coils. The PCM uses the crankshaft position sensor and camshaft position sensor signal to time the energizing of the coil. When a primary ignition coil is energized and de-energized, the secondary coil produces a high voltage spike to the attached spark plugs.

DTC Description

If the surge voltage of ignition coil is lower than threshold value, the PCM determines that a fault exists and a DTC is stored.
