Radio, Stereo, and Compact Disc: Service and Repair

REMOVAL

1. Disconnect the negative(-) battery terminal.

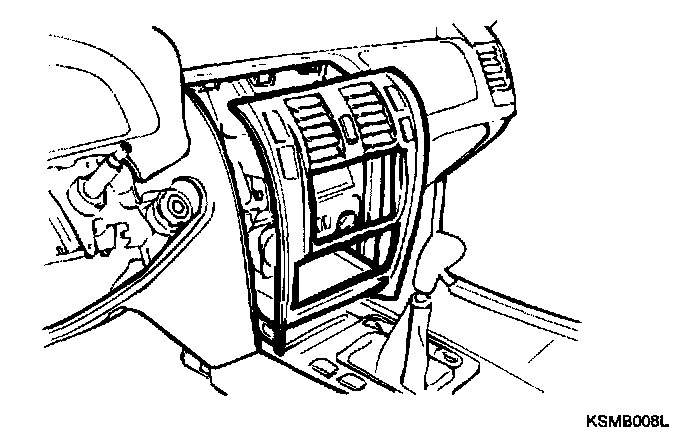

2. Remove the center facia panel and disconnect the wire connectors.




3. Remove the 4 screws holding the audio unit then remove the audio assembly.




4. Disconnect the power connector and antenna cable jack tram the audio unit.
5. Installation is the reverse at removal.
