Head Lamp and Fog Lamp Aiming Point
HEAD LAMP AND FOG LAMP AIMING POINTHeadlamp And Fog Lamp Aiming Point:
1. Turn the low beam on without driver aboard
The cut-oft line should be projected in the allowable range (shaded region).

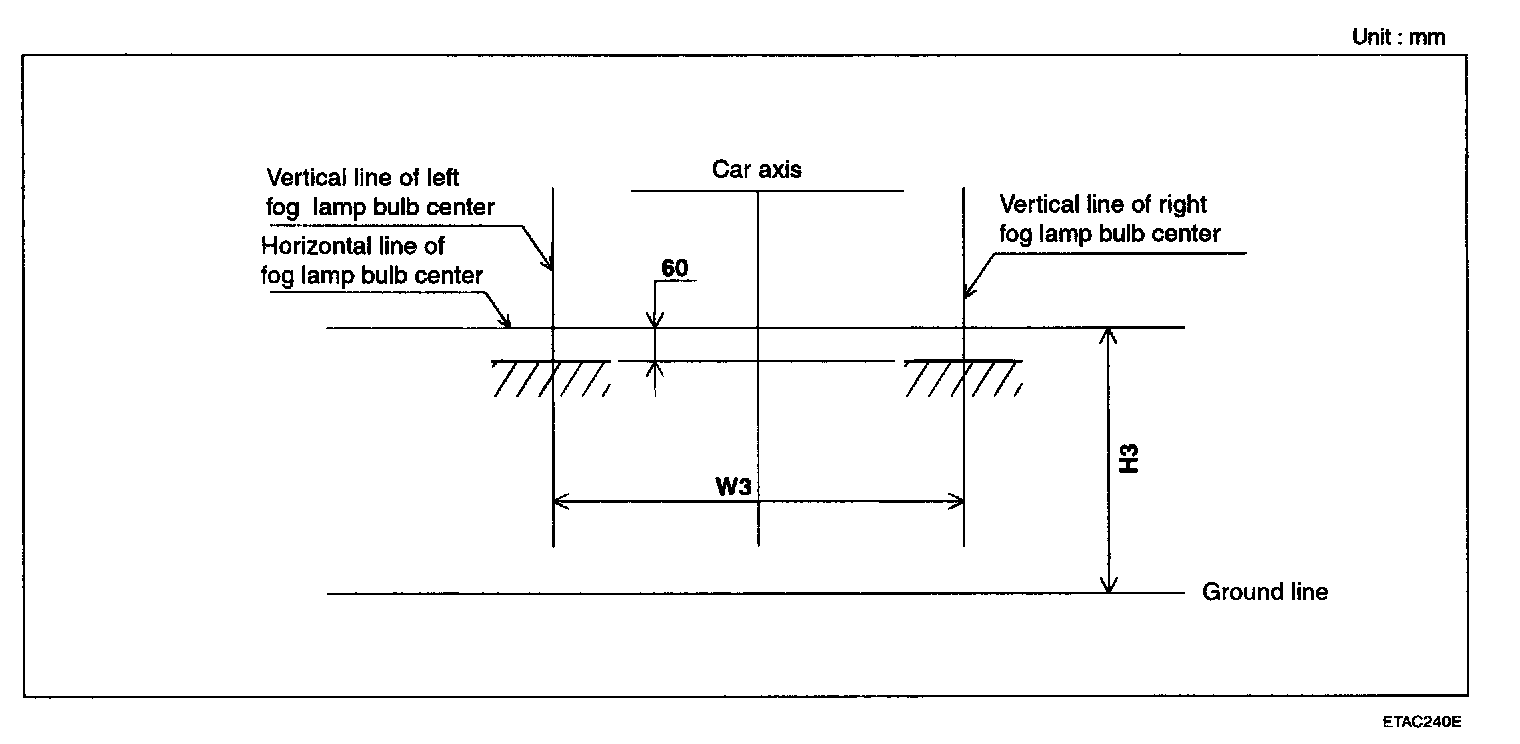

2. Turn the front tog lamp on without the driver aboard.
The cut-oft line should be projected in the allowable range (shaded region).
