Humidity Sensor: Service and Repair
HUMIDITY SENSORREPLACEMENT
1. Disconnect the negative (-) battery terminal.

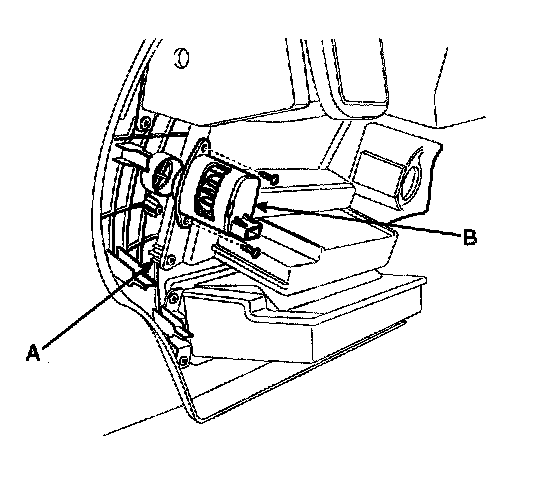

2. Remove the center facia panel (A).
3. Disconnect the humidity sensor connector (A).
4. Loosen 2 screws and then remove the humidity sensor (B).
5. Installation is the reverse order of removal.
