Wiper Blade: Service and Repair

WIPER BLADE REPLACEMENT

DRIVER'S WIPER BLADE REPLACEMENT

1. Lock back it after standing the wiper arm with the wiper switch off.

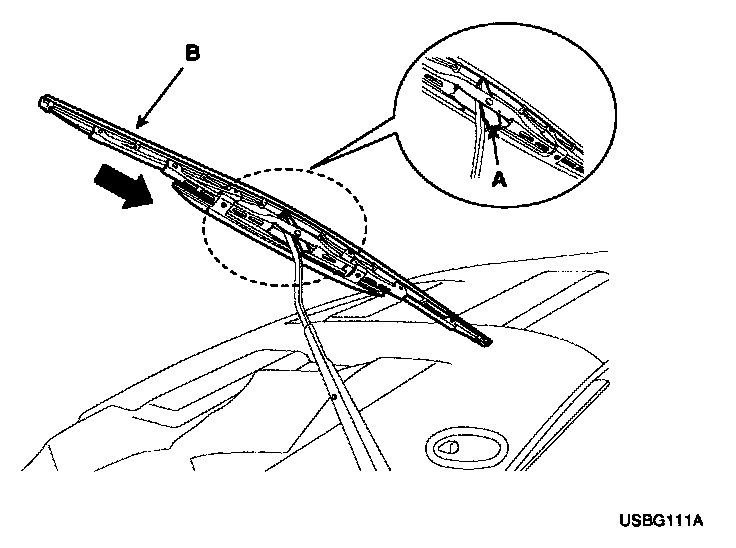

2. Replace the blade (B) with pressing the blade fixing lever (A).






PASSENGER'S WIPER BLADE REPLACEMENT

METHOD 1

1. Lift the wiper arm (passenger side) about 10 mm the windshield glass with wiper switch off.

CAUTION: Take care not to damage between the hood and wiper arm.

2. Replace the blade (A) pressing the blade fixing lever.






METHOD 1

1. Turn on the wiper switch after IGN ON.
IGN OFF to stop the blade on the windshield glass.






2. Lock back it after standing the wiper arm
3. Replace the blade (B) pressing the blade fixing lever (A).
