Drive Belt: Service and Repair

ALLDATA Editor Note: The following is taken from step 22 of the timing chain removal procedure no reference is included regarding clearance.

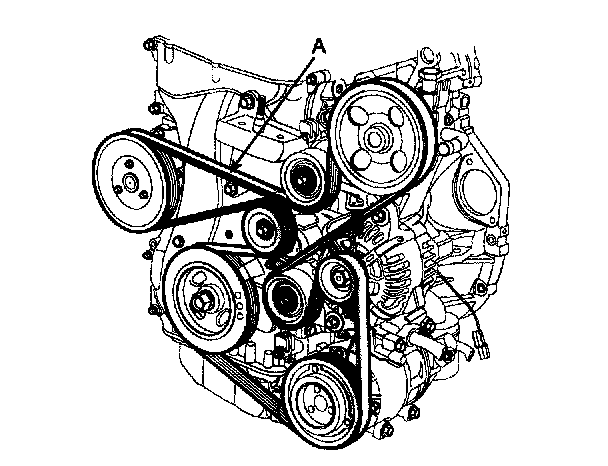

22. Install drive belt (A)
Crankshaft pulley -> A/C pulley alternator pulley idler pulley -> P/C pump pulley idler pulley -> water pump pulley -> tensioner pulley.
Rotate auto tensioner arm in the counter - clockwise moving auto tensioner pulley bolt with wrench.
After putting belt on auto tensioner pulley, release the auto tensioner pulley slowly.
