Home >> Hyundai >> 2007 >> Sonata V6-3.3L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

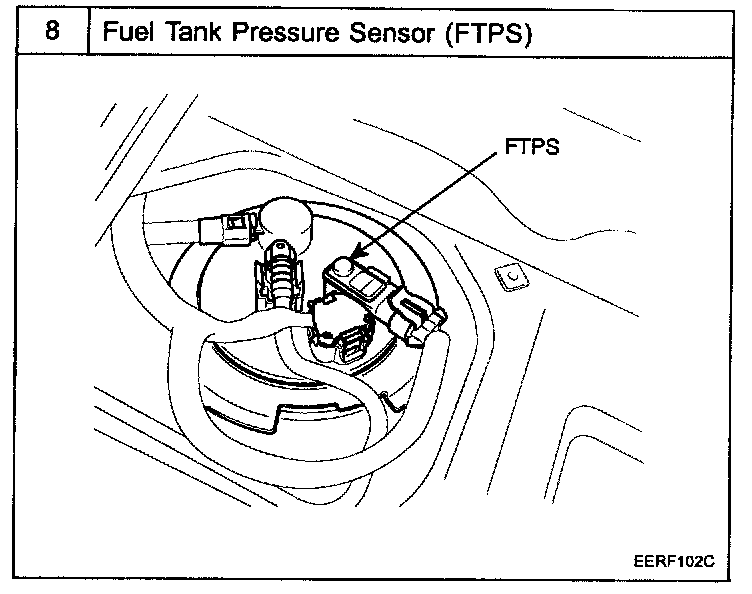

8 - Fuel Tank Pressure Sensor (FTPS):

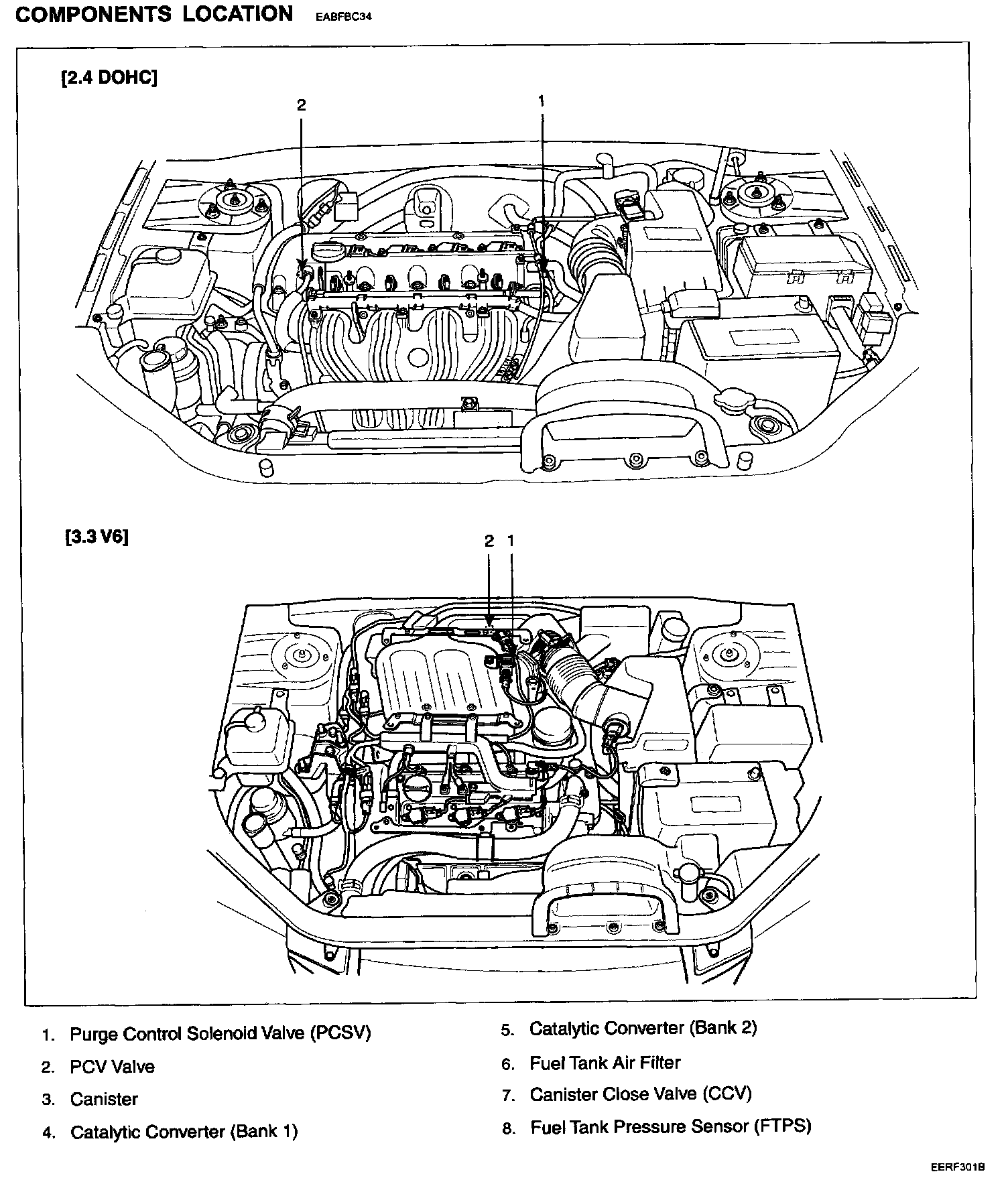

Overview:

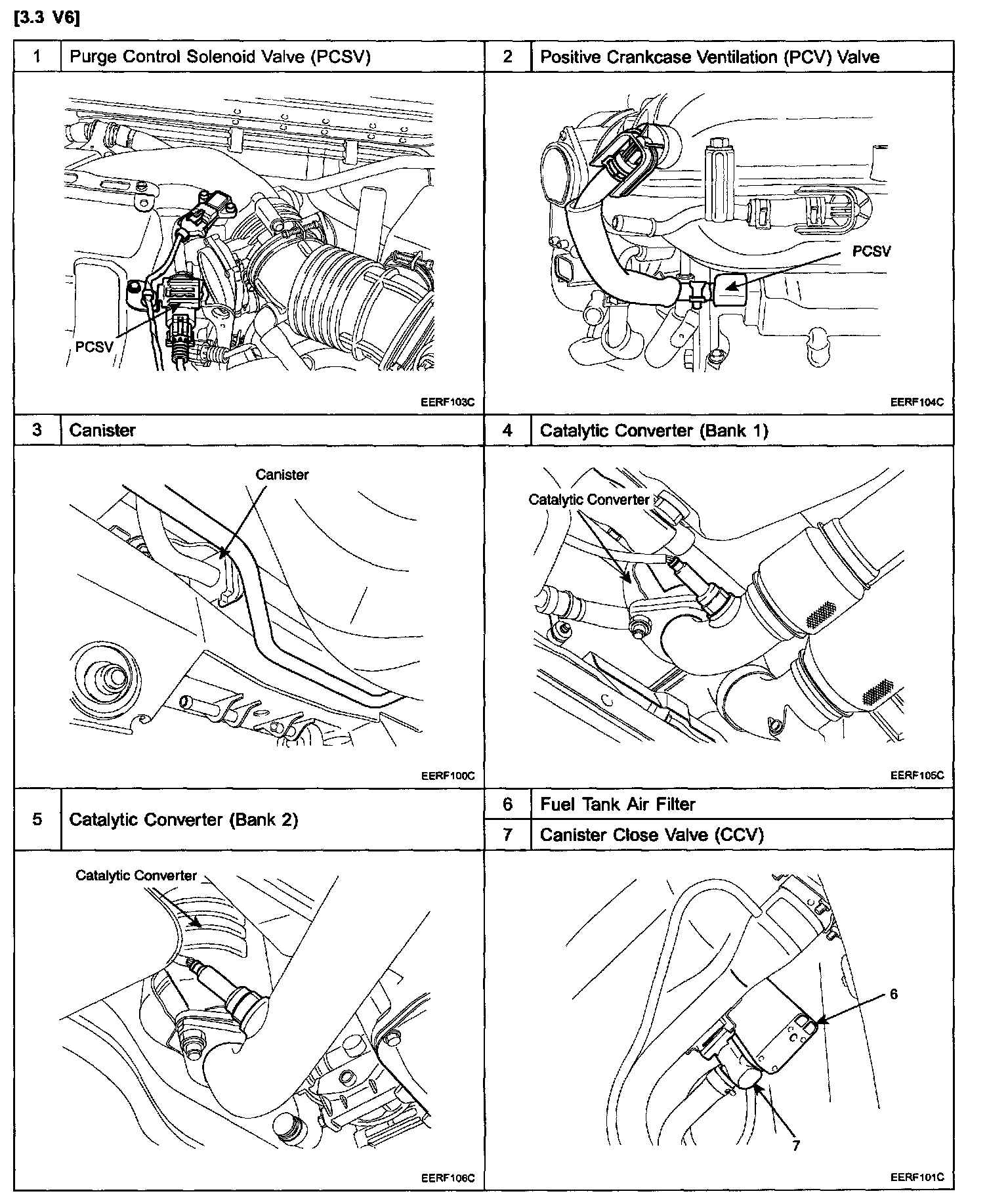

Detail Components 1-7 Only:
