Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

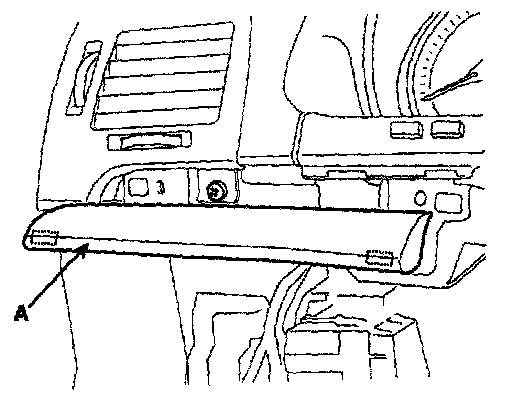

2. Remove the center garnish (A)

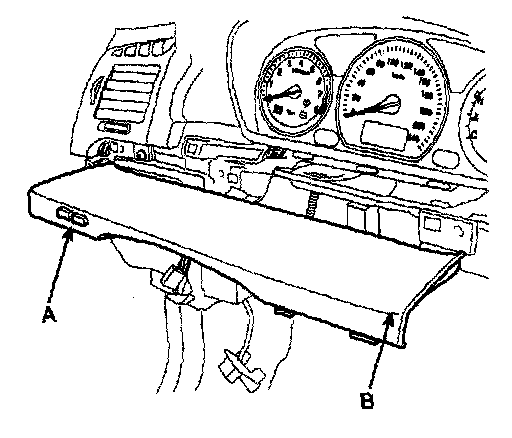

3. Remove the cluster facia panel (B) after disconnecting the connector of trip switch (A).

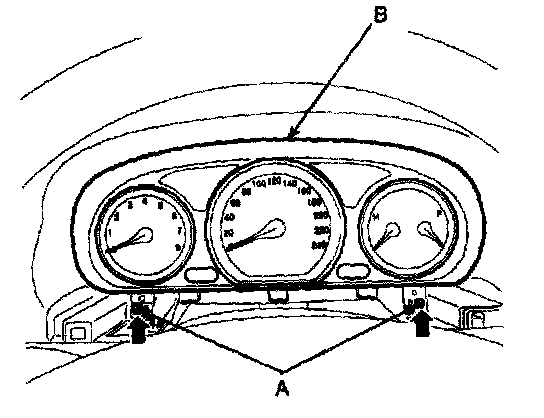

4. Remove the cluster from the housing (B) after removing 2 screws (A).

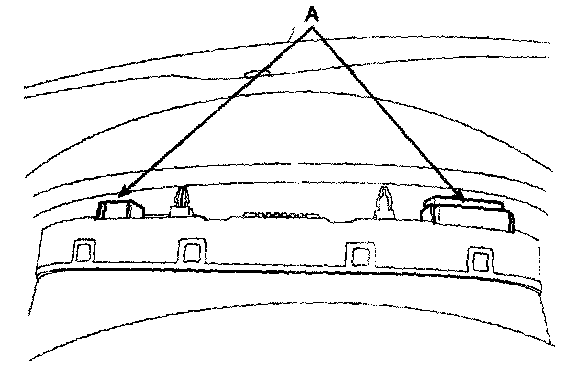

5. Disconnect the duster connector (A) and then remove the cluster.
6. Installation is the reverse of removal.
