Antenna: Service and Repair

Replacement

1. Remove the rear filler trim and package tray. .

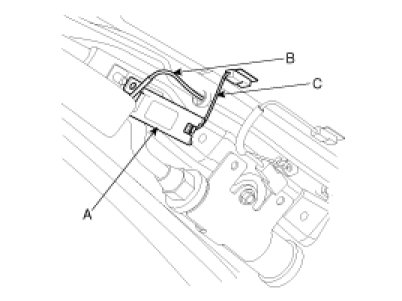

2. Remove the glass antenna radio amplifier (A) - Left/Right each 1 ea- after removing radio feeder cable (B) and amplifier wiring (C) from the glass antenna radio amplifier (A).




3. Installation is the reverse of removal.
