Tire Monitoring System
Tire Monitoring System
Schematic Diagram
Circuit Diagram

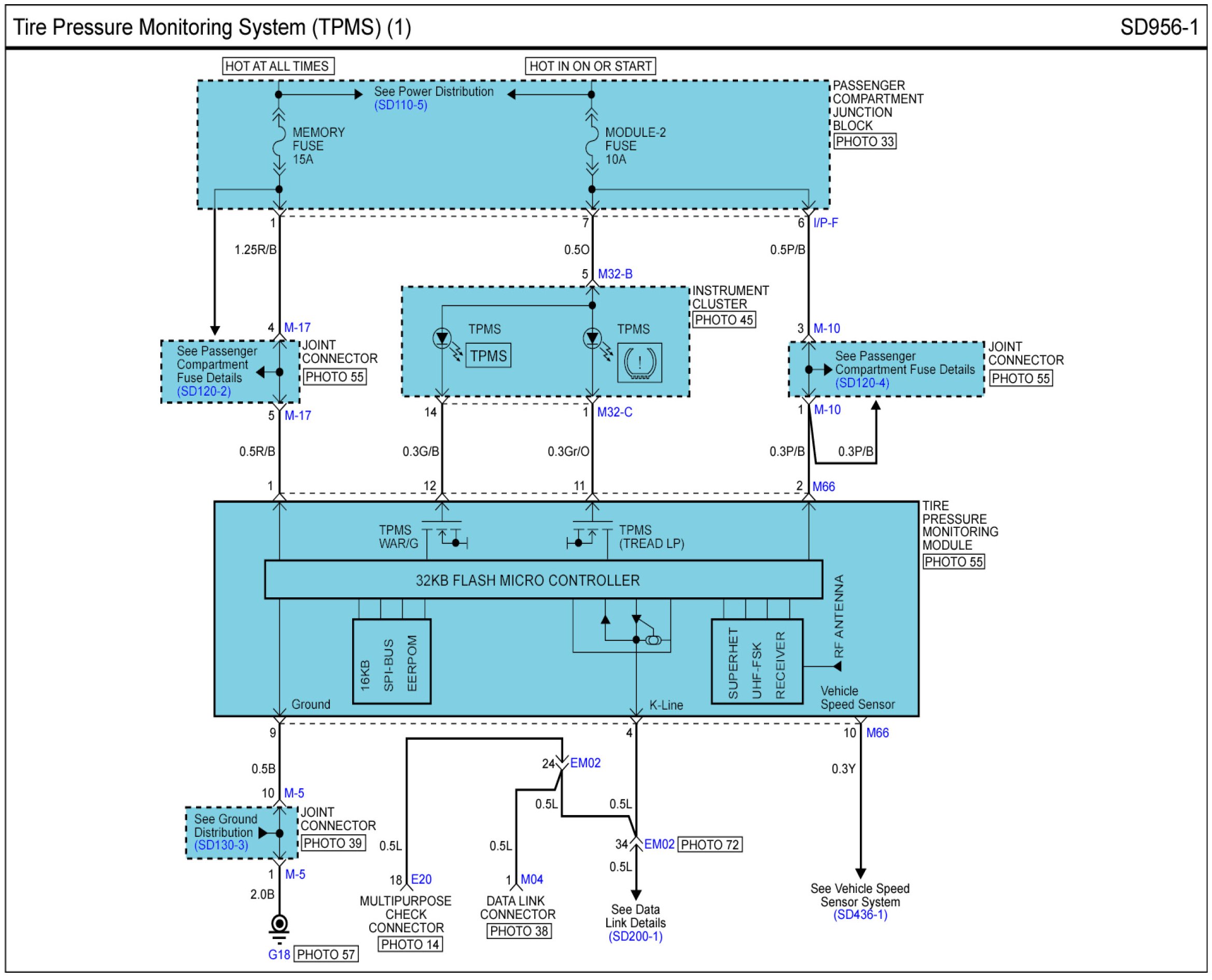

Tire Pressure Monitoring System (TPMS) (1):
Tire Pressure Monitoring System (TPMS) Connector Pin Outs:
