Headlamp: Testing and Inspection

Inspection

Head Lamp And Fog Lamp Aiming Point








1. Turn the low beam on with driver.
The cut-off line should be projected in the allowable range (shaded region).

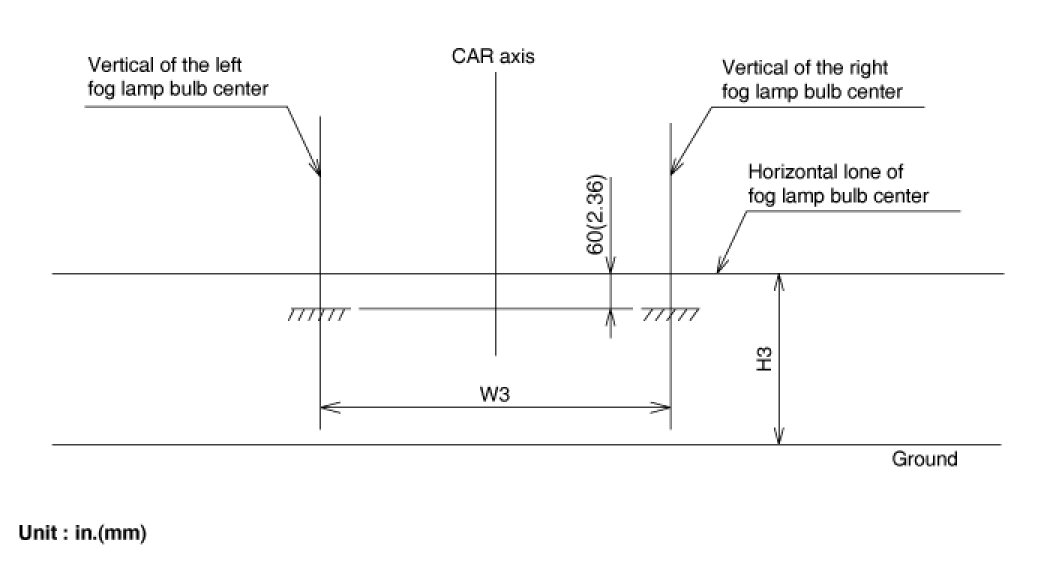

2. Turn the front fog lamp on with driver.
The cut-off line should be projected in the allowable range (shaded region)
