Vanity Lamp: Service and Repair

Vanity Lamp And Hands Free Mic Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

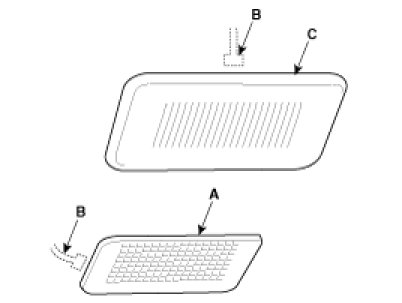

1. Using a screwdriver, and remove the vanity lamp (A) and hands free mic (C).
2. Disconnect the connector (B).




3. Installation is the reverse of removal.
