Home >> Hyundai >> 2009 >> Azera V6-3.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft

Axle Shaft





Specifications

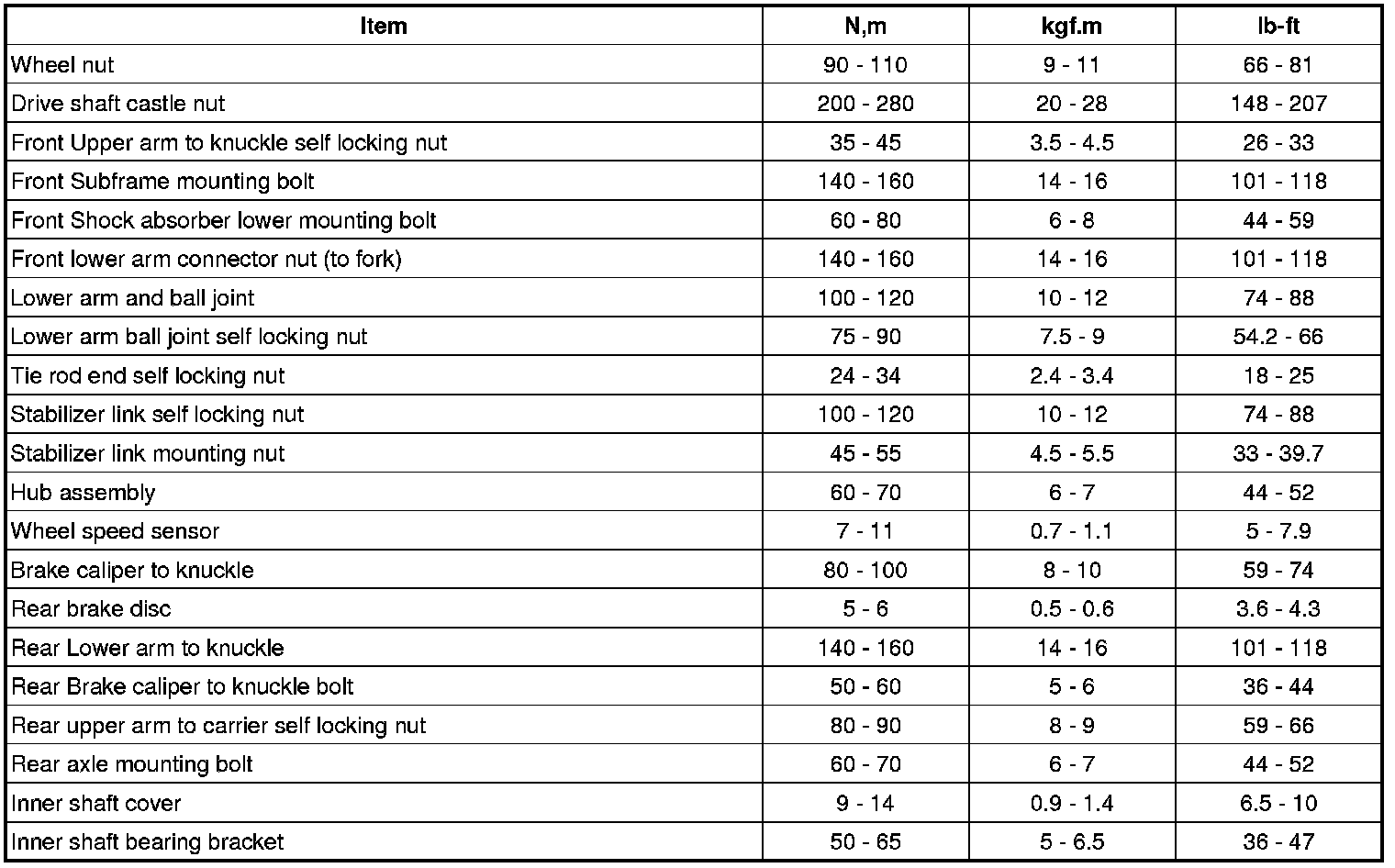

Tightening Torques





CAUTION:
Replace self-locking nuts with new ones after removal.
