Glove Compartment: Service and Repair

Glove Box Replacement

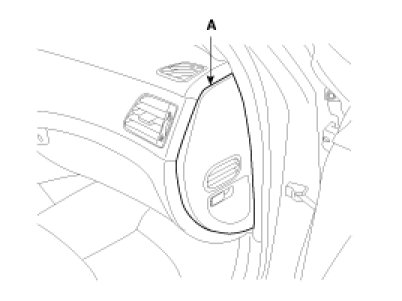

1. Remove the crash pad side cover (A).




2. Disconnect the damper (B) from the glove box (A).




3. Remove the glove box (B) from the lift (A).

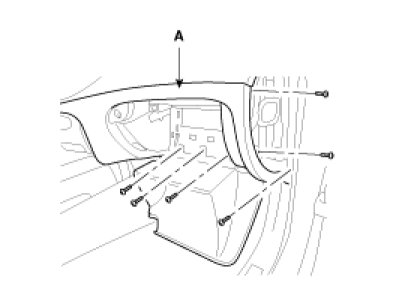

4. After loosening the mounting screws, remove the glove box assembly (A).




5. Disconnect the connector (A).




6. Installation is the reverse of removal.
