Electro Chromic Inside Rear View Mirror

Removal

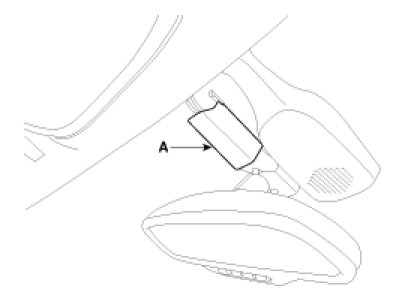

1. Remove the mirror wiring cover (A).




2. Remove the connector (B).
3. Push the inside rear view mirror base up to remove the inside rear view mirror assembly (A) after removing the screw.





CAUTION:
Make sure the spring mounting bracket and mirror not to be damaged.

Installation

1. Install the mirror assembly.
2. Install the mirror wiring cover and connector.
