Schematic Diagrams

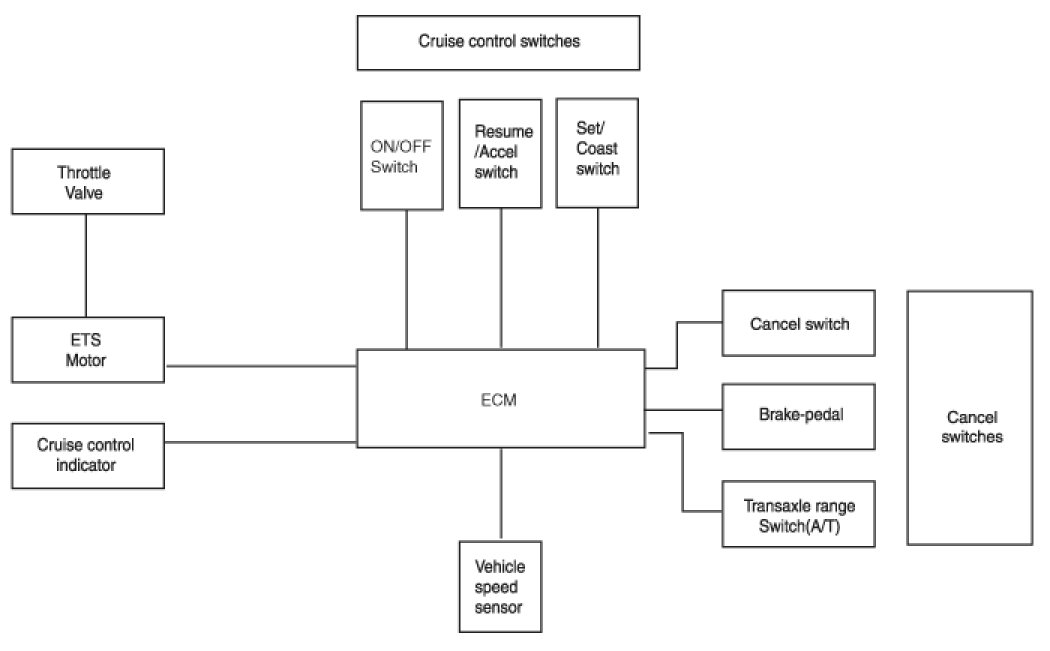

System Block Diagram

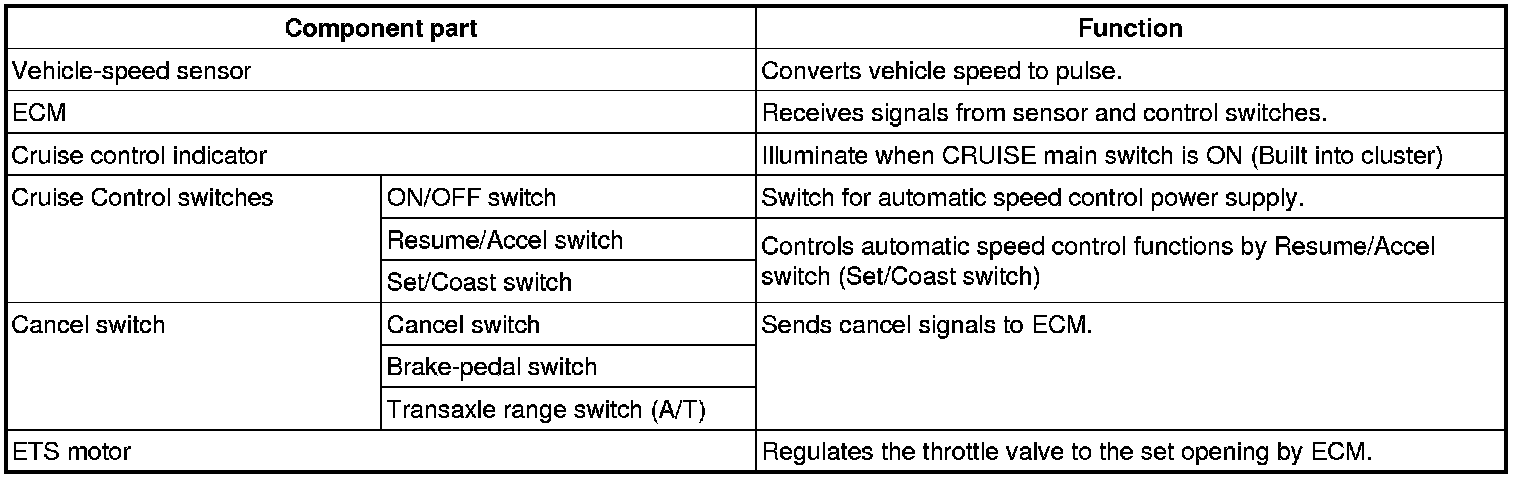

Component Parts And Function Outline





* ETS : Electronic Throttle System
