Overhaul

Disassembly

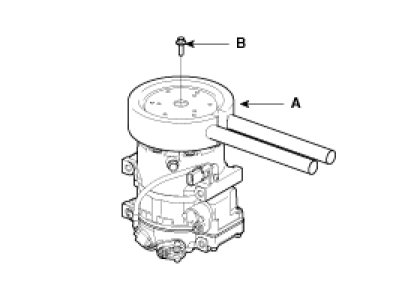

1. Remove center bolt (B) while is catching pulley outside order page by special tool (A).

TORQUE :10 - 15N.m (1.02 - 1.53kgf.m, 7.37 - 11lbf.ft)

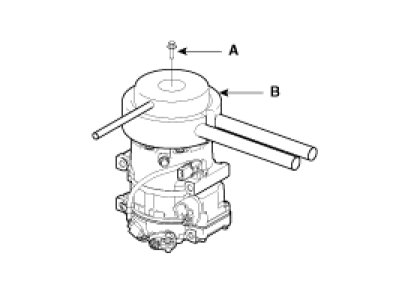

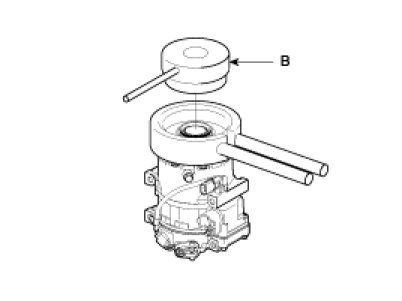

2. Remove disk from pulley to clockwise after set special tool (B) in hall of disk upper part after remove center bolt (A).

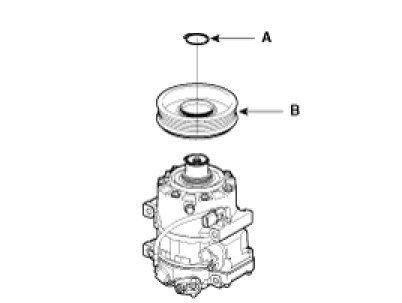

3. If you removal the field coil, remove retainer ring (A) with retainer ring pliers.

NOTE:
- Be careful not to damage the pulley (B) and compressor during removal/installation.
- Once retainer ring (A) is removed, replace it with a new one.




4. Reassemble the compressor clutch in the reverse order of disassembly, and note these items :
A. Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
B. Install new retainer rings, and make sure they are fully seated in the groove.
C. Make sure that the pulley turns smoothly after its reassembled.
