Center Facia Panel Replacement

Center Facia Panel Replacement
1. Remove the crash pad side cover.
2. Remove the lower panel.
3. Remove the cluster facia panel.
4. After loosening the crash pad side garnish mounting screws, remove the side garnish (A).

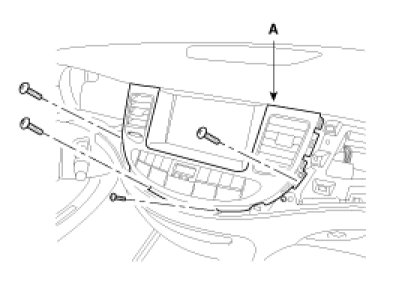

5. After loosening the center facia panel mounting screws, remove the center facia panel (A).

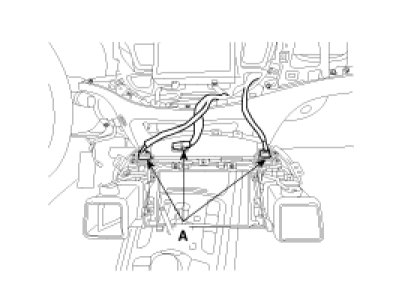

6. Disconnect the connector (A).




7. Installation is the reverse of removal.
