Adaptive Front Lighting System

AFLS unit

Removal

1. Disconnect the negative (-) battery terminal.

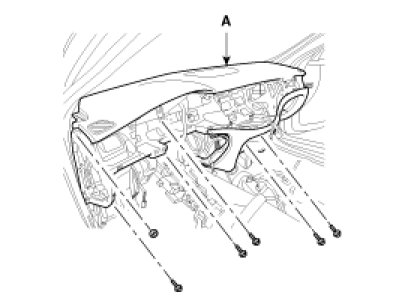

2. Remove the main crash pad (A).




3. Remove the AFLS unit(A) after removing connector and nuts(2EA).






Installation

1. Install the AFLS unit after connecting the connector.
2. Install the main crash pad.
3. Connect the negative (-) battery terminal.
