Fluid Pan, A/T

Oil Pan

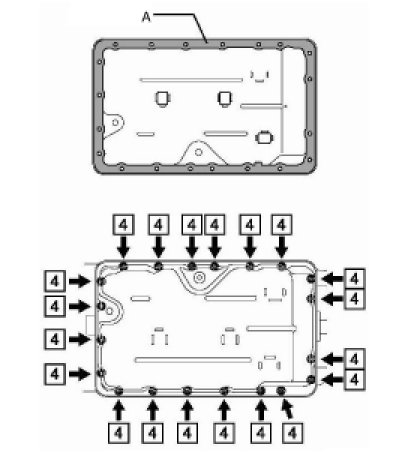

Install a new oil pan gasket (A) and the oil pan to the transmission case by tightening the 20 bolts.

Tightening torque 6 - 8 Nm(0.6 - 0.8 kgf.m, 4.34 - 5.78 lb-ft)

Bolt size(4) :M6x1.0x14.5mm


CAUTION:
- Be careful not to damage the fitting surfaces of the transmission case and the oil pan.
- Be careful not to deform the oil pan.
- Be reminded that bolts might be damaged if tightened too much since the gasket is cork-made and there is little tightening sense.
