Output Speed Sensor
Replacement

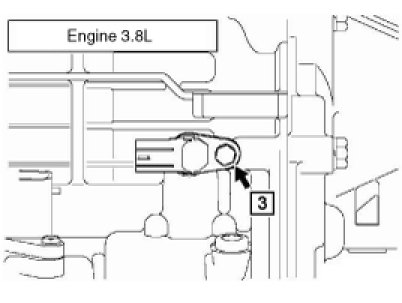

1. Remove the bolt to remove the input speed sensor from the ATM.
2. Install the input speed sensor with the bolt to the ATM.
Tightening torque :
4 - 7 Nm(0.4 - 0.7 kgf.m, 2.89 - 5.06 lb-ft)
Bolt size(3) :M6x1.0x14mm
Replacement
1. Remove the bolt to remove the input speed sensor from the ATM.
2. Install the input speed sensor with the bolt to the ATM.
Tightening torque :
4 - 7 Nm(0.4 - 0.7 kgf.m, 2.89 - 5.06 lb-ft)
Bolt size(3) :M6x1.0x14mm
