Navigation System: Service and Repair

Removal

Navigation head unit
1. Disconnect the negative (-) battery terminal.

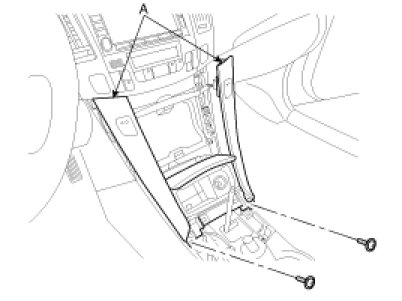

2. Remove the side garnish(A).




3. Remove the center garnish(A).

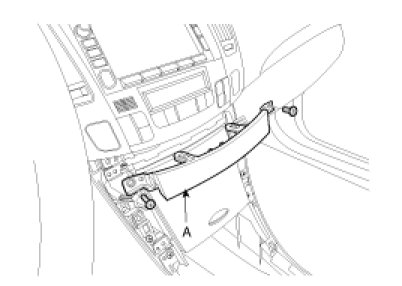

4. Remove the center facia panel(A) using the scraper.

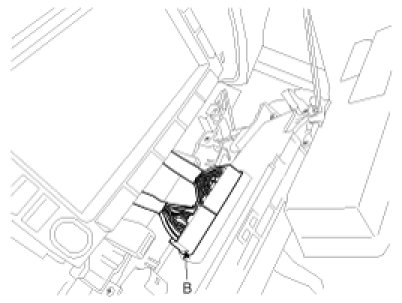

5. Disconnect the clock and heater control unit connector(B).

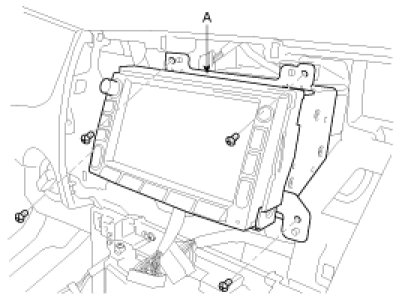

6. Remove the mounting screws then remove the navigation unit(A).

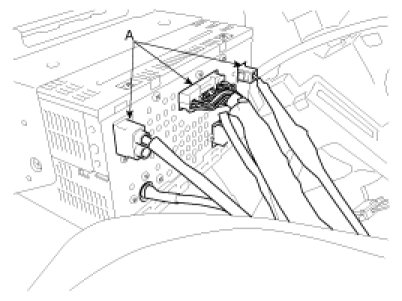

7. Disconnect the connectors and cables(A).





Navigation antenna
1. Remove the roof trim.

Installation

Navigation head unit
1. Install the navigation unit after connecting the connectors and cables.
2. Install the center facia panel.
3. Install the side garnish.
4. Check the navigation system.
