Fuel Door: Service and Repair

Replacement

Fuel Fill Door Replacement

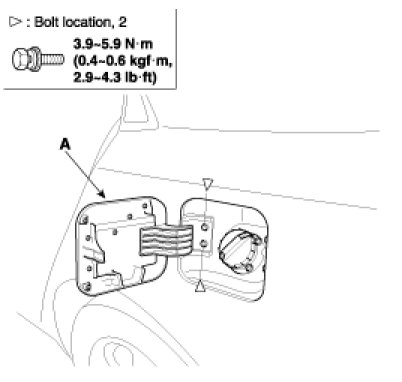

1. Loosen the bolts, then remove the fuel filler door (A).




2. Installation is the reverse of removal.

NOTE:
- Make sure the fuel fill door opens properly and locks securely.

3. Check that the fuel fill door (A) fits flush against the body.
If necessary, adjust it.
