Grille: Service and Repair

Replacement

Radiator Grille Replacement
1. Open the hood.
2. Remove the radiator under cover (A).

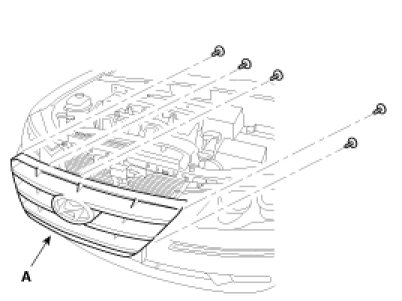

3. After loosening the mounting screw, then remove the radiator grille (A).




4. Installation is the reverse of removal.
