Home >> Hyundai >> 2009 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

Axle Shaft

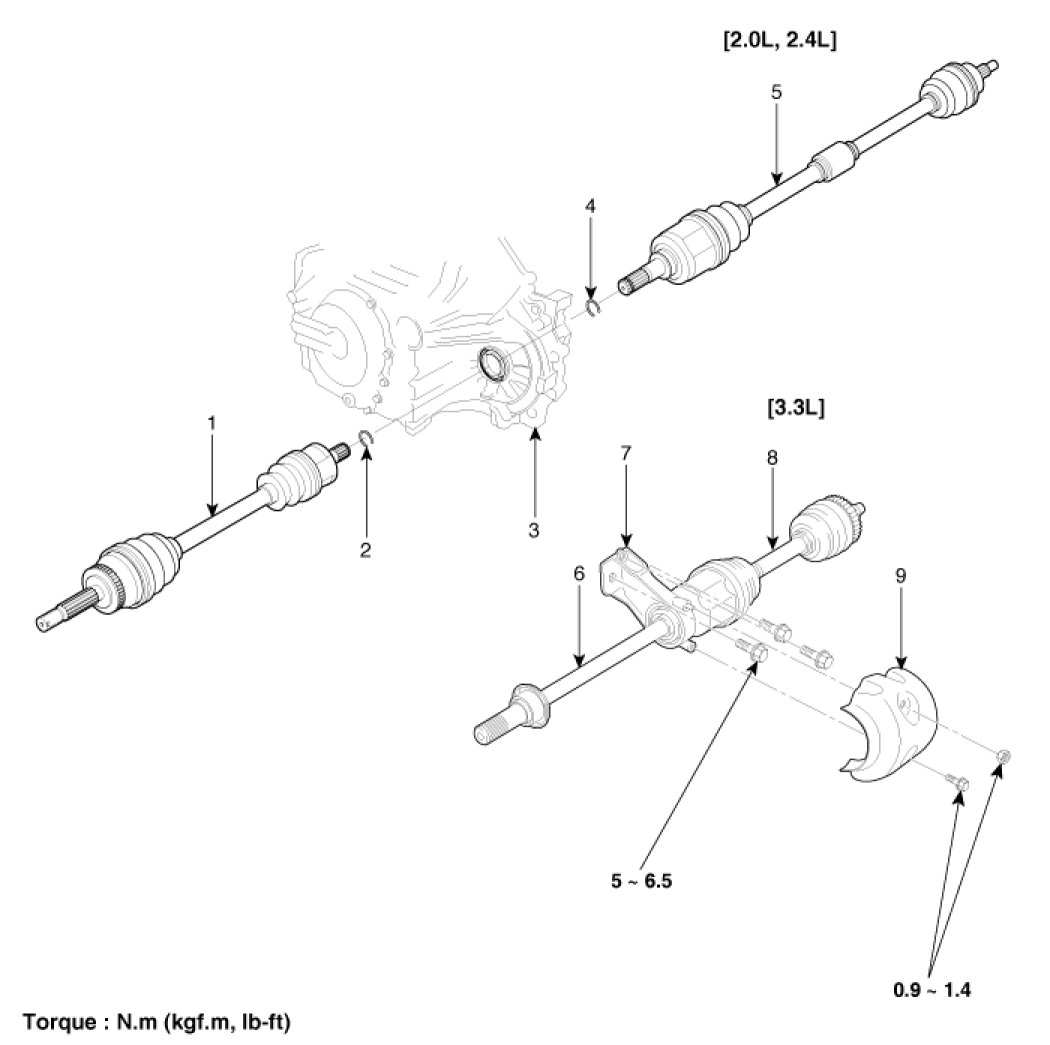

Components

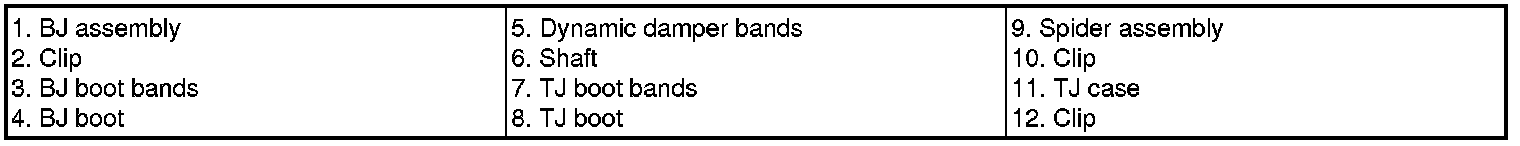

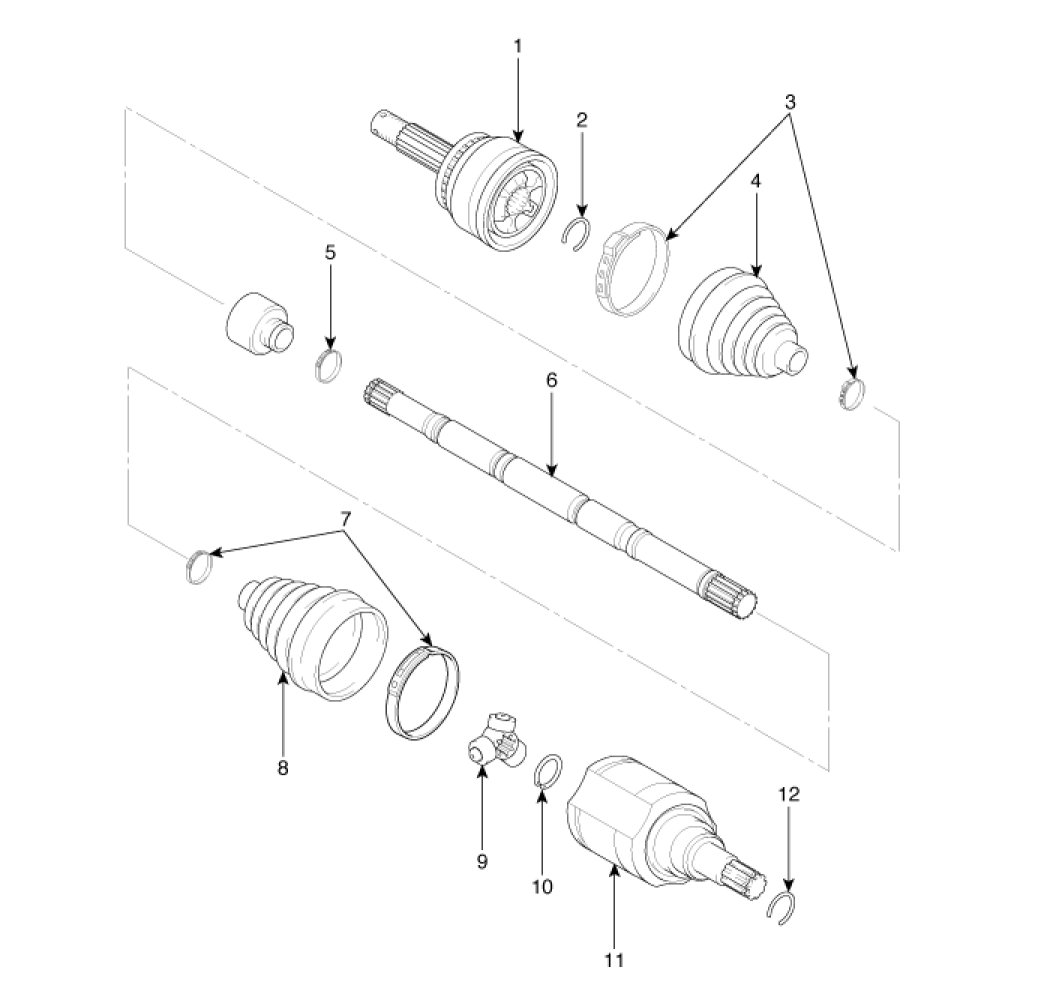

Front Driveshaft (TJ-BJ Type)

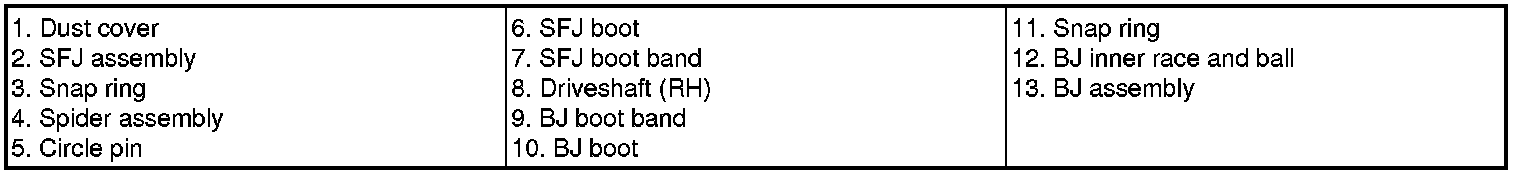

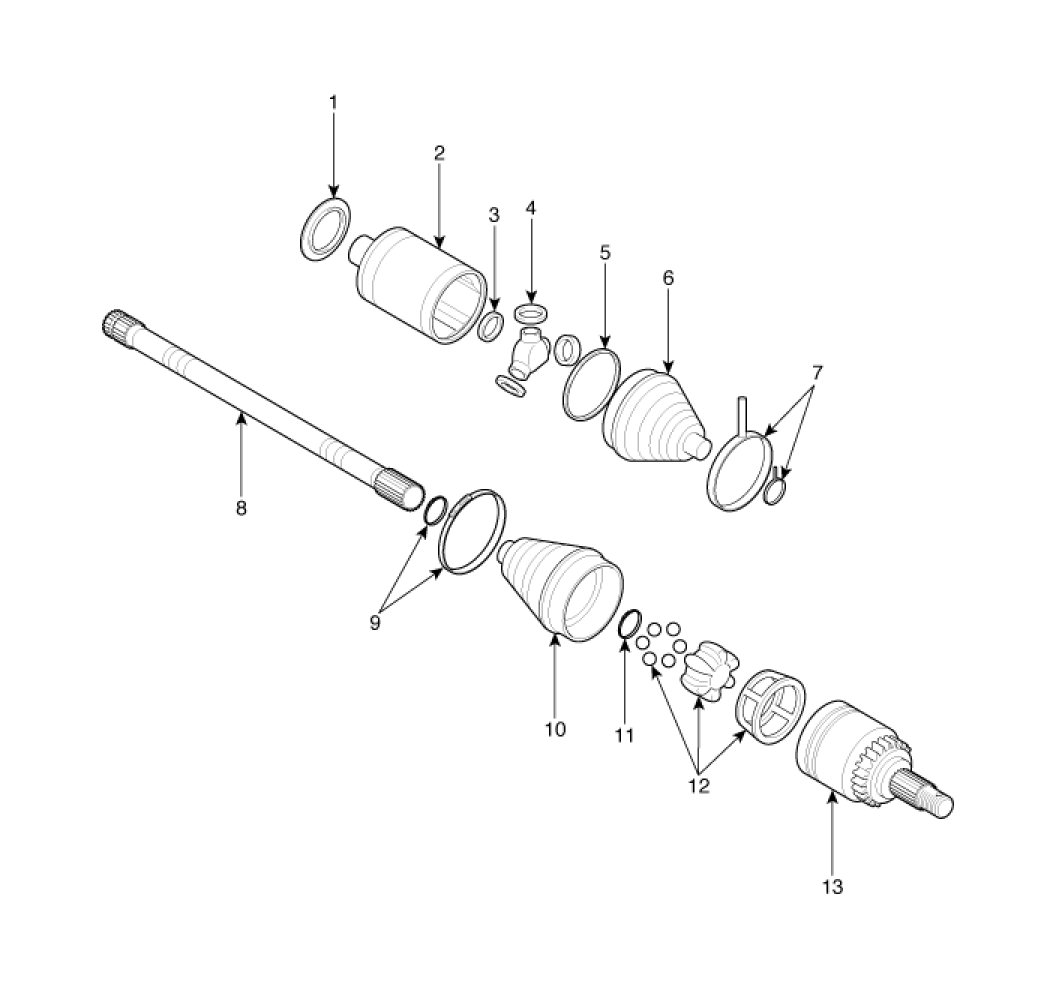

Front Driveshaft (SFJ-BJ Type)
