Center Fascia Panel Replacement

Replacement

Center Fascia Panel Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the knob (A).




2. Remove the console under cover (B).




3. Disconnect the connector (C).




4. After loosening the mounting screws, then remove the center fascia lower panel (A).




5. Disconnect the connector (A).




6. After loosening the mounting screw, then remove the upper center tray bezel (A).

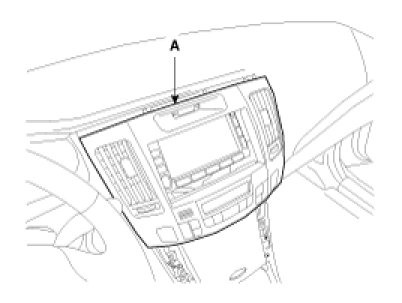

7. Remove the crash pad center fascia panel (A).




8. Disconnect the connector (A).

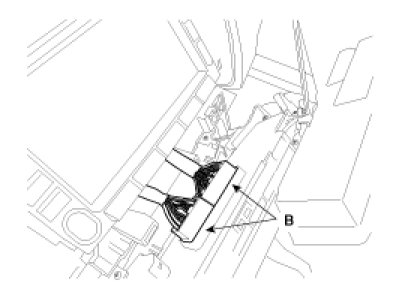

9. Disconnect the heater unit connector (B).




10. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
