Crash Pad Center Lower Tray Replacement
Replacement
Crash Pad Center Lower Tray Replacement

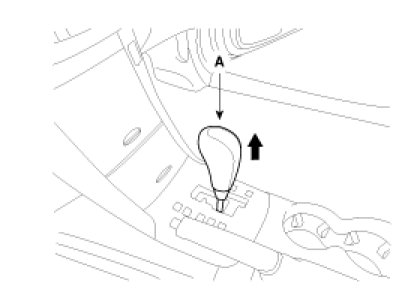

1. Remove the knob (A).
2. Remove the console under cover (B).
3. Disconnect the connector (C).
4. After loosening the mounting screws, remove the center fascia lower panel (A).

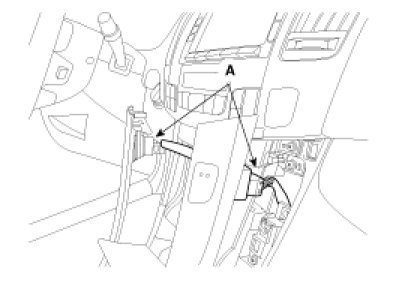

5. Disconnect the connector (A).
6. After loosening the mounting screw, remove the upper center tray bezel (A).

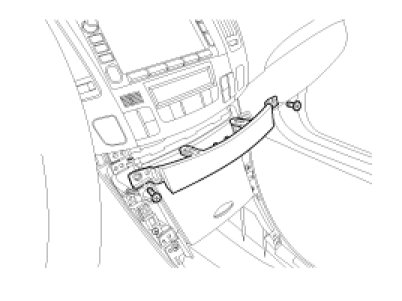

7. After loosening the mounting screw, remove the lower tray (A).
8. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
