Cluster Replacement

Replacement

Cluster Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.
2. Remove the crash pad side cover.

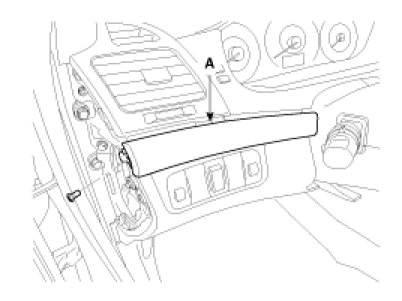

3. After loosening the mounting screw, then remove the crash pad garnish (A).




4. After loosening the mounting screw, then remove the air vent (A).




5. After loosening the mounting screw, then remove the cluster fascia panel (A).




6. Disconnect the trip connector (A).




7. After loosening the mounting screws, then remove the cluster (A).

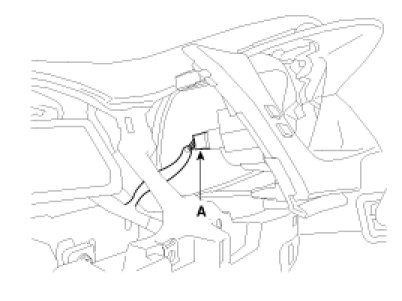

8. Disconnect the connector (A).




9. Installation is the reverse the removal.

NOTE:
- Make sure the connector is plugged in properly.
