Seat Temperature Switch: Testing and Inspection

Inspection

1. Disconnect the negative (-) battery terminal.

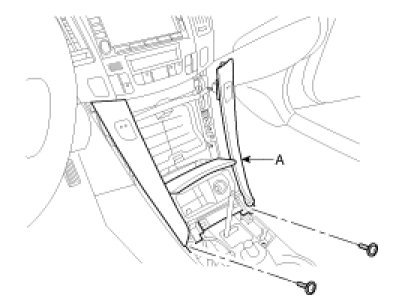

2. Remove the side garnish(A) after loosening the mounting clips.

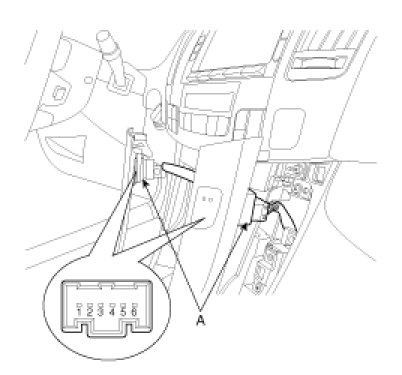

3. Remove the switch(A) after removing the seat heater connector from the side garnish.
1. GND
2. IND High
3. ILL(-)
4. ILL(+)
5. Switch signal
6. IND Low

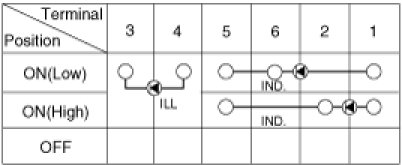

4. Check that continuity exists between the terminals.
