Component Inspection

Brake

ABS/ESC - C1208 Wheel Speed Sensor Rear-LH Invalid/no Signal - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Engine "ON".
3. Start and drive vehicle in gear and maintain vehicle speed is approx. 50 km/h or more (31 mph or more).

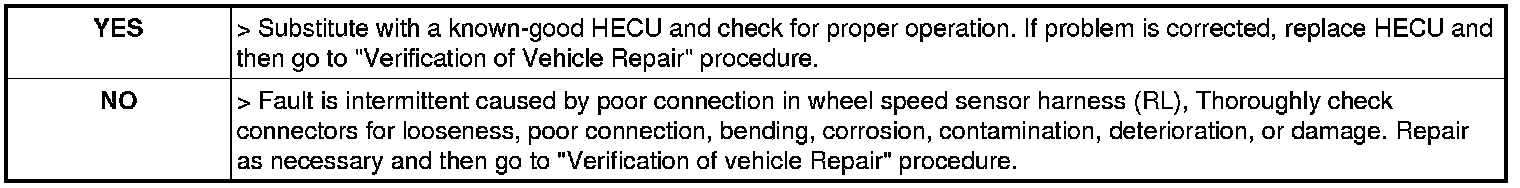

4. Does warning lamp remain On?
