Component Inspection

Engine

Engine Control - P0051 HO2S Heater Circuit low (Bank 2 / Sensor 1) - Component Inspection

Component Inspection

1. Check HO2S (B2/S1) Heater resistance.
(1) IG "OFF" and disconnect HO2S (B2/S1) connector.

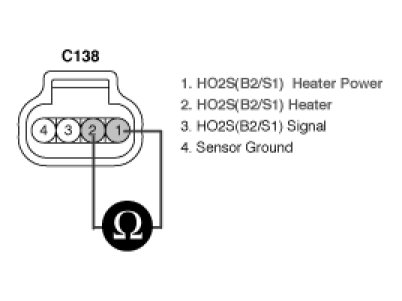

(2) Measure resistance between terminal 1 and 2 of HO2S (B2/S1) connector (Component Side)
Specification









(3) Is the measured resistance within specification?
