Monitor DTC Status

Transmission

Automatic Transaxle - P0748 Pressure Control Solenoid Valve (VFS) 'A' Electrical - Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PRESS CONTROL SOL. VALVE" parameter on the scan tool
4. Shift gear at each position.
















Fig 1) "R"
Fig 2) P, N
Fig 3) "D 1st" gear
Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear
Fig 7) "5th" gear

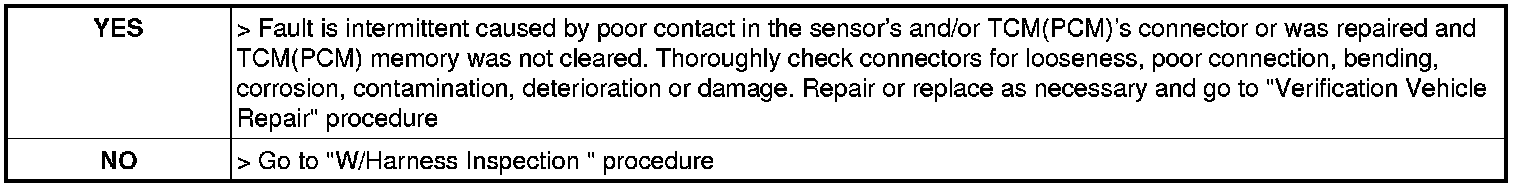

5. Does "PRESS CONTROL SOL DUTY" follow the reference data?
