Cowl: Service and Repair
Cowl Top Cover Replacement
1.
Remove the wiper .
2.
Remove the
hood
seal
weatherstrip
3.

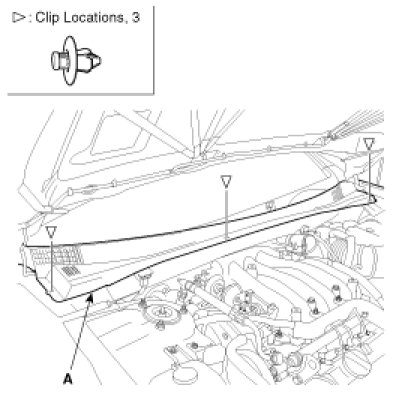

Detach the clips, then remove the cowl top cover (A).
4.
Installation is the reverse of removal.
