Restraints and Safety Systems: Testing and Inspection

Precautions for Electrical Inspections
- When using electrical test equipment, insert the probe of the tester into the wire side of the connector.
Do not insert the probe of the tester into the terminal side of the connector, and do not tamper with the connector.




- Use a u-shaped probe. Do not insert the probe forcibly.
- Use specified service connectors for troubleshooting.
Using improper tools could cause an error in inspection due to poor metal contact.

Airbag Connector
Disconnecting

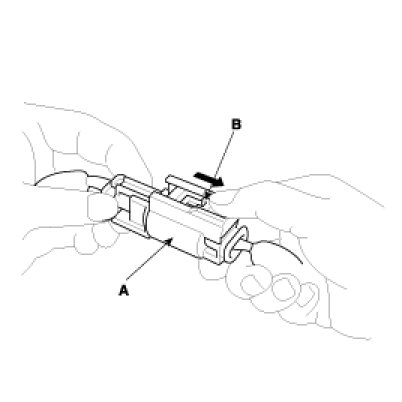

To release the lock, pull the spring-loaded sleeve (A) and the slider (B), while holding the opposite half of the connector. Pull the connector halves apart. Be sure to pull on the sleeve and not on the connector half.






Connecting
Hold both connector halves and press firmly until the projection (C) of the sleeve-side connector clicks to lock.
